Replaces Johnson Impeller 09-801B
Replaces Jabsco Impeller 4568-0001, 4568-0001-P, 4568-0001-B
Used on Jabsco Pump 4900 200, 52040-2001
Used on Volvo Penta AQ131/145/150/170A
Replaces Volvo Penta Impeller 875575 (replaced by VP 21951350) , 875573 , 831182, 875575-3
Replaces Yanmar Impeller 124310- 46090, 1145410-46090
Replaces Oberdorfer 6620 on pump 301m, 302m-03.
302M-03 Used on Phasor Marine diesel gensets V1903-BGE, V2203-BGE, F2803-BGE, D1703-BGE.

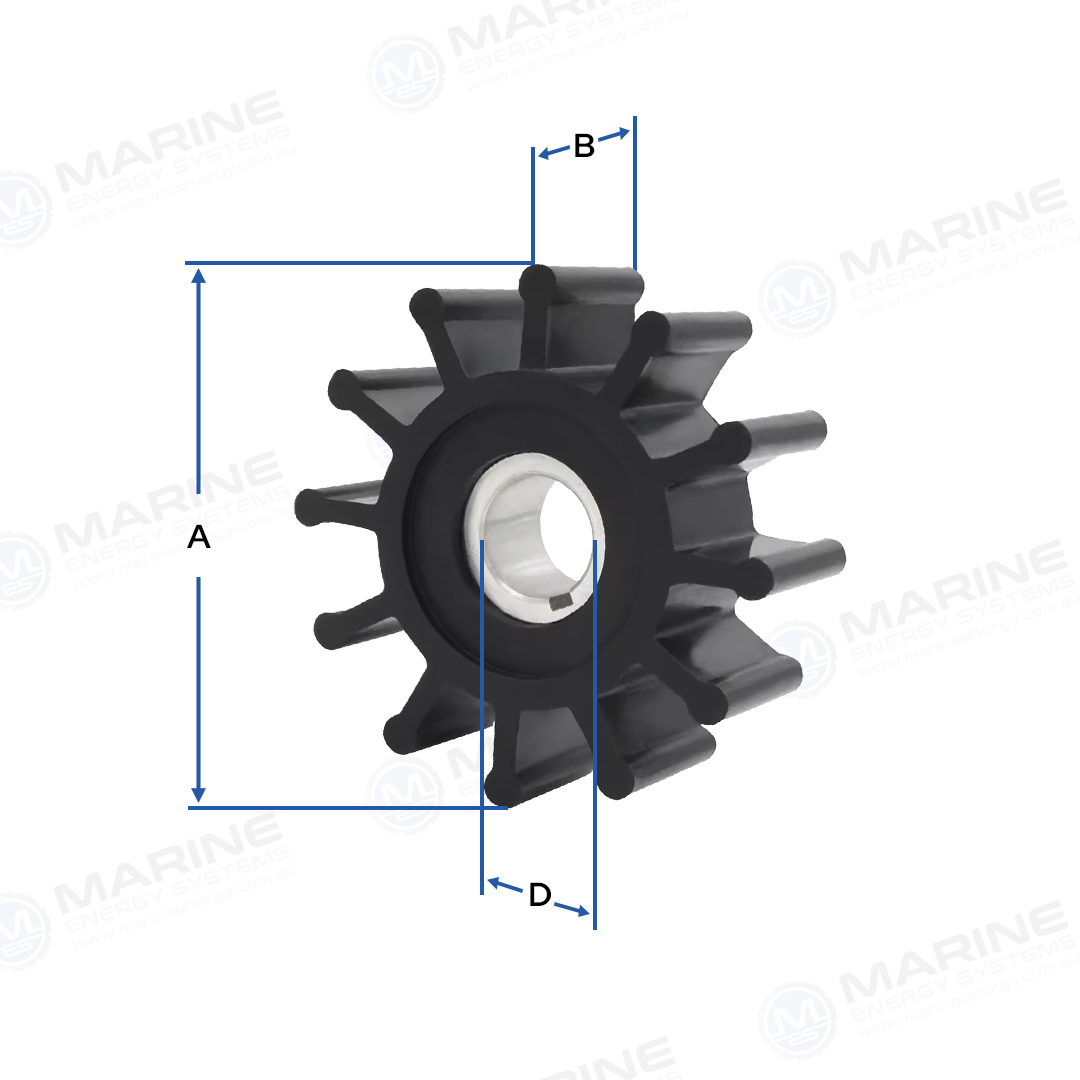

Impeller Specifications: A= 57mm, B= 31.5mm, D= 16mm Shaft Type= Keyway Type
Impeller Rubber Material - Neoprene
Number of Blades – 12

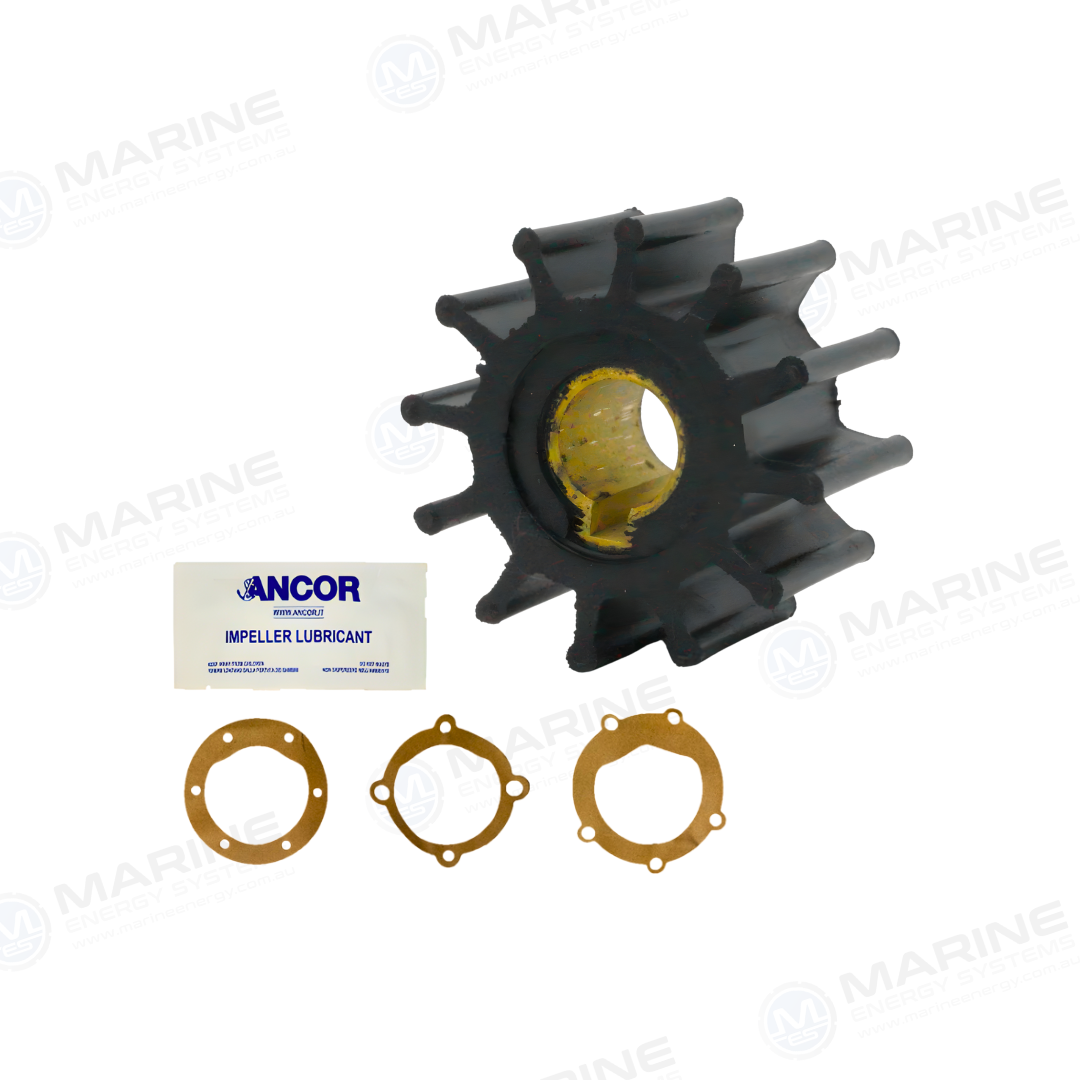

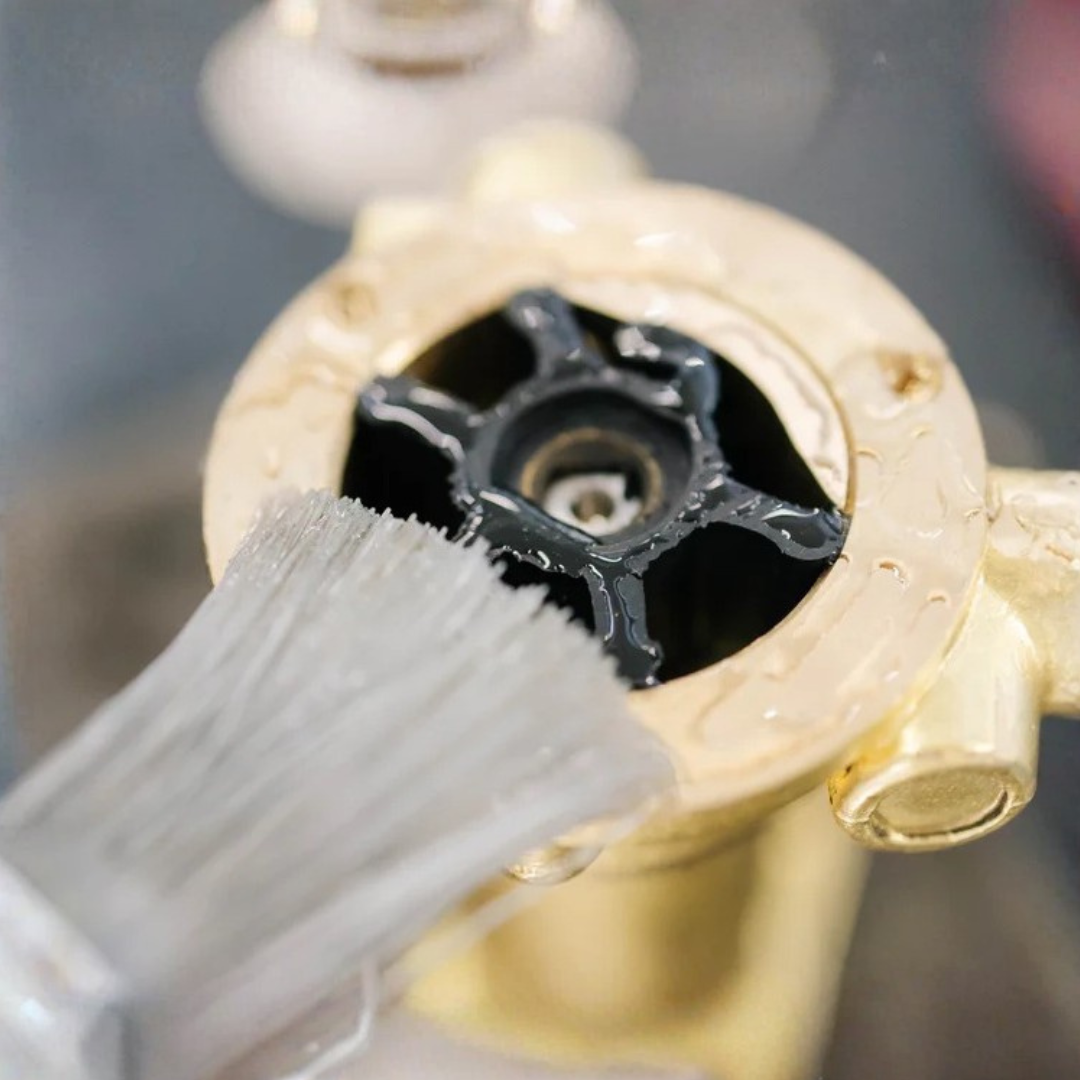

Impeller kit includes lubricant and a range of cover plate gaskets and o-rings to suit most applications.
