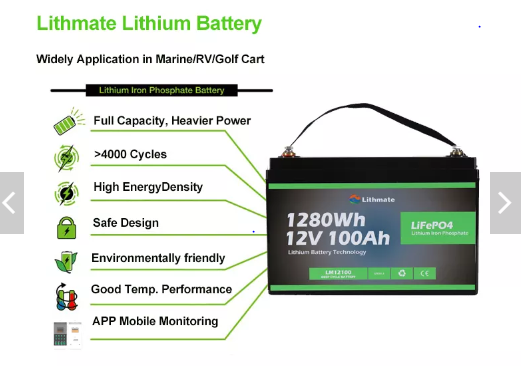

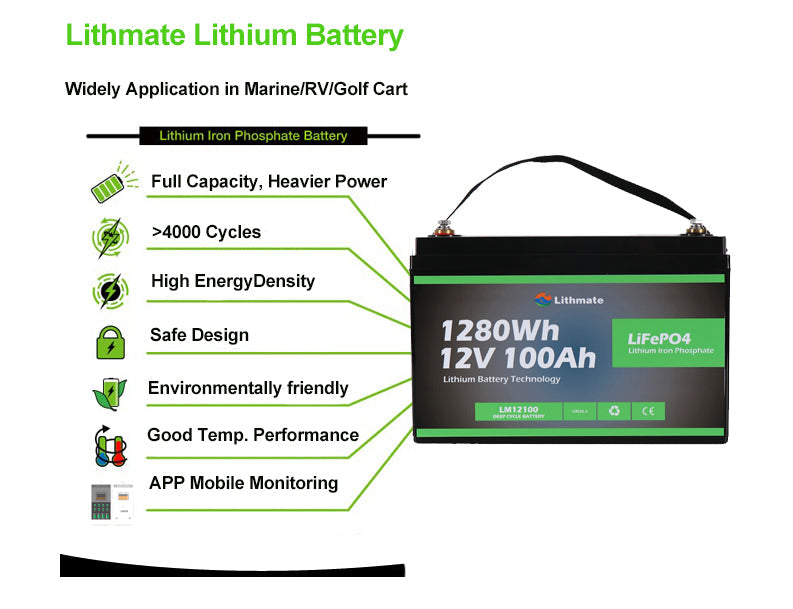

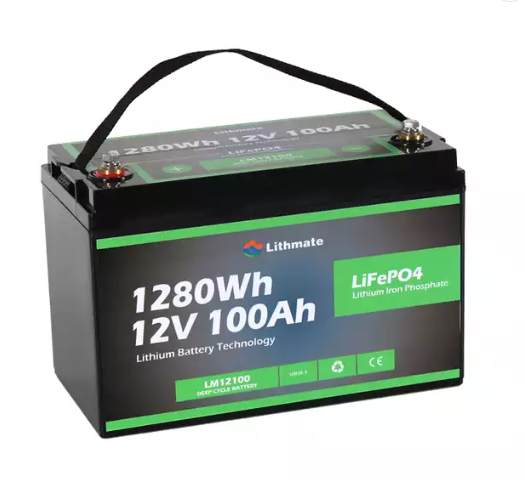

Marine LiFePO4 12v100ah Lithium Ion Battery

Designed & used for marine electronics, electric trolling motors 12V, 24V, 36V and many more applications.

Most electric trolling motor will operate with any deep cycle 12-volt marine battery. However for the longest run time and lifespan lithium ion phosphate (LiFePO4) batteries are recommend. Here’s why.

  1. Lithmate Lithium LiFePO4 batteries will provide double to triple the run time.
  2. Lithmate Lithium batteries last longer and will need to be replaced less often. Providing peace of mind and greater lifetime value.
  3. Lithmate Lithium weighs 60% less than deep cycle lead acid batteries. Less weight means more maneuverability and speed. And the batteries are easier to carry when you need to charge them.
  4. Lithmate lithium ion phosphate works down to negative 20 celsius meaning you can power your boat in the summer and the coldest of winters.
  5. You need less batteries when you use a Lithmate Lithium. Lithium ion phosphate has a flat voltage curve. This means that the voltage does not drop as you use the battery. You get all the power down to the last drop. Historically, if you power a trolling motor with a deep cycle lead acid battery you would only be able to use half of the capacity of the battery before the voltage is too low to run the motor. With Lithmate Lithium you can use all of the power of the battery, meaning that a 100 Ah battery from Lithmate Lithium is equal to 200 Ah in lead acid batteries.
Rated capacity  100AH / 1280WH
Standard voltage  12.8V
Standard Charge voltage  14.6V
Charge current  Normal - 50A     Max - 100A
Cycle Life  >4000 cycles at 100% discharge
Series parallel application Max 4 Batteries in series or 2 Batteries in parallel
Weight  Super light 12.6kg
Battery dimension L=329mm,  W=172mm, H=214mm
Bluetooth optional model with mobile app
Built in automatic protection for overcharge, over discharge or temperature conditions Flame retardent plastic casing
Maintance Free Can be charged using most standard led acid chargers set for AMG/GEL cells
Communication of data via bluetooth/ mobile app, data managemnet system (DMS) Waterproof design
Completly dry battery Can be used in series or parrallel
>4000 cycles under normal conditions  Continuous 100Ah
Safe - Unlike other lithium-ion batteries, thermal stable made LiFePO4 battery no risk of thermal runaway, which means no risk of flaming or explosion. Eco Friendly, LiFePO4 batteries are made from non-toxic materials such as iron, graphite, and copper, all of which are easily recycled.
5 Year Warranty 5x faster charging than led acid


Electric Motor Thrust / Max Amp Draw / Voltage

  • 30 lb / 30A @12V / 12V 100Ah Battery / Full day of runtime plus
  • 40 lb, 45 lb / 42A @12V /12V 100Ah Battery / Full day of runtime plus
  • 50 lb, 55 lb / 50A @12V / 12V 100Ah Battery / Full day of runtime plus
  • 70 lb / 42A @ 24V / 2x 12v 100Ah batteries in series / Multiple days of runtime
  • 80 lb / 56A @ 24V / 2x 12v 100Ah batteries in series / Multiple days of runtime
  • 101 lb / 46A @ 36V / 3x 12v 100Ah in series / Multiple days of runtime
  • 112 lb / 52A @ 36V / 3x 12v 100Ah in series / Multiple days of runtime


Other Great Uses

Rv, Caravans, Kayaks, Camping and 4x4 set ups.


Bluetooth Monitoring
For battery models including bluetooth monitoring, you can download the app at the following links:
