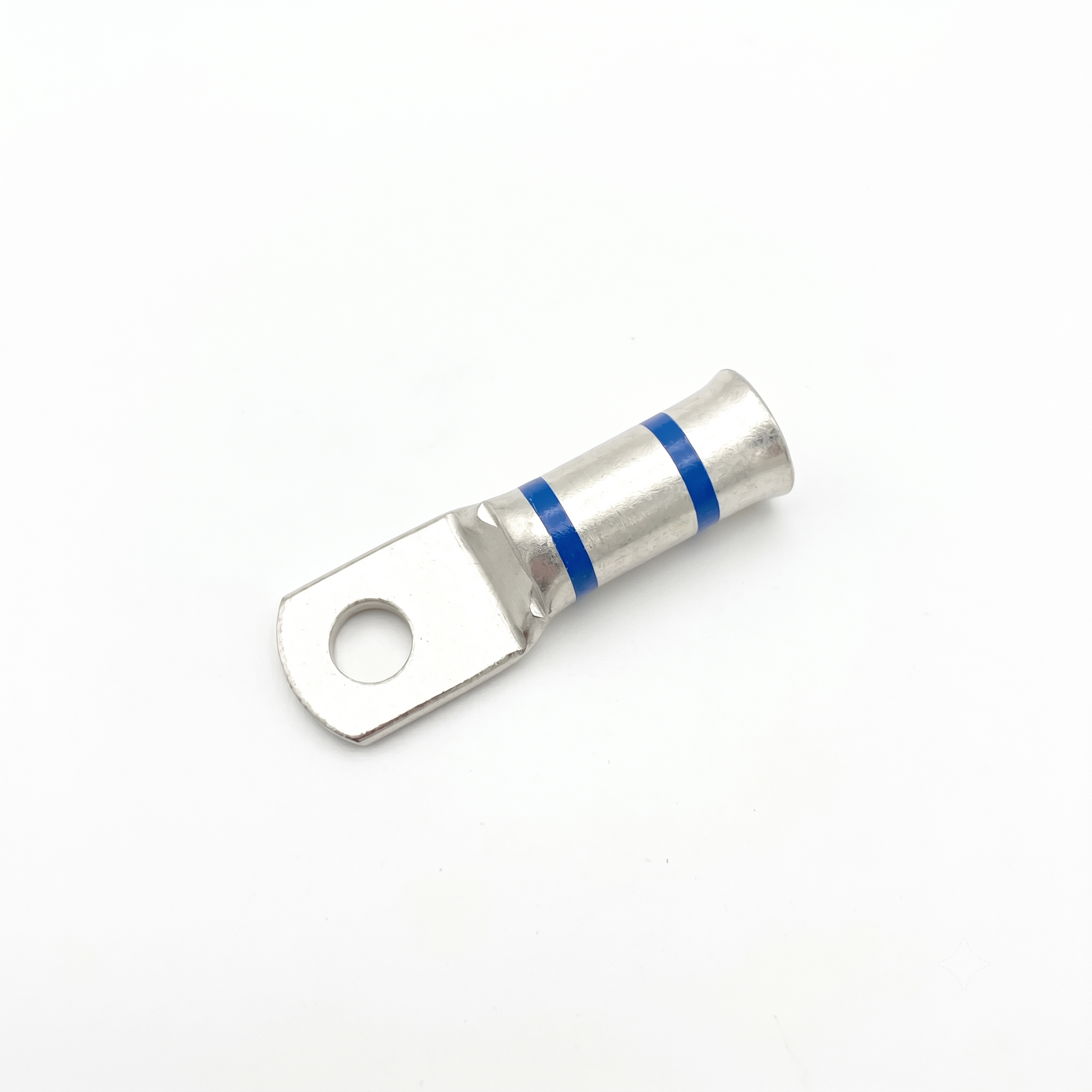

Heavy-Duty Tinned Copper Bellmouth Cable Lug | 35mm² Cable, 8mm Stud
Eliminate the frustration of wire splaying and secure your high-current electrical systems with this premium 35mm² Copper Bellmouth Cable Lug. Engineered explicitly with a 8mm stud hole (M8), this heavy-duty terminal is designed to form a permanent, low-resistance electrical connection for heavy main power feeds, large dual-battery setups, and high-load industrial systems.
What sets this lug apart is its precision-formed Bellmouth (flared) barrel entry. When working with flexible, fine-stranded heavy-gauge cables, stripped conductors tend to "splay" or fan out. The widened, bell-shaped mouth seamlessly guides all wire strands smoothly into the barrel jacket, eliminating caught strands, minimizing installation down-time, and guaranteeing full conductivity across the crimp.
Key Features
-
Flared Bellmouth Entry: Speeds up installation and ensures 100% of fine wire strands safely enter the crimping zone without snagging or bunching up.
-
99.9% Pure Annealed Copper: Oxygen-free, high-conductivity copper body provides maximum current carrying capacity and prevents problematic voltage drops.
-
Premium Electro-Tinned Finish: Deeply tinned layer offers exceptional protection against oxidation, corrosion, and environmental breakdown—critical for marine and exposed chassis areas.
-
Seamless Solid Construction: Formed from a single piece of heavy-wall copper tube to handle extreme physical vibrations, physical pull, and high thermal strain without splitting.
-
Standard Die Alignment: Designed to fit perfectly into standard Australian and international hexagonal crimping dies (compatible with standard commercial trade tooling).
Technical Specifications
| Feature |
Specification |
| Terminal Type |
Heavy-Duty Crimp Lug (Bellmouth Entry) |
| Cable Sizing |
35mm² |
| Stud / Hole Size |
8mm (M8) |
| Material Profile |
99.9% High-Purity Annealed Copper (Oxygen-Free) |
| Surface Finish |
Electro-Plated Tin (Corrosion Resistant) |
| Temperature Rating |
Continuous performance from -55°C to +155°C |
| Compliance |
Manufactured to conform with AS/NZS 4325.1 trade standards |
Applications
Engineered specifically for heavy-current power delivery systems subjected to movement and environmental extremes, including:
-
Primary 12V / 24V / 48V battery cables and main earth grounding loops
-
4WD dual-battery isolators, winches, and high-output inverter installations
-
Marine inboard engine grounding, main switchboards, and anchor winches
-
Commercial switchgear, solar arrays, and industrial power distribution boxes
