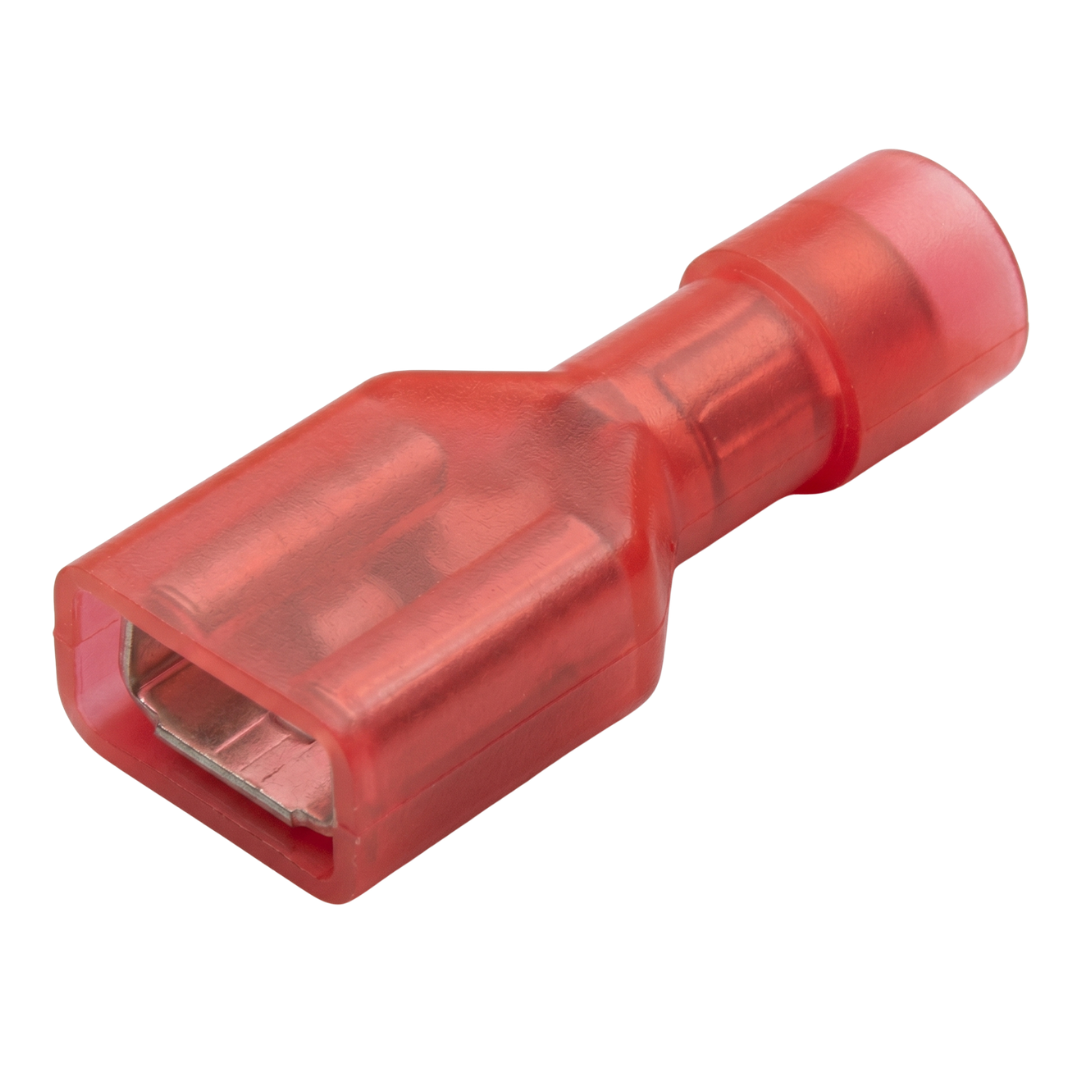

Pre-Insulated Red Female Spade Terminals | 6.4mm Tab (100 Pack)
Streamline your quick-disconnect wiring with this premium 100-pack of pre-insulated Red Female Spade Terminals. Engineered to match standard 6.4mm (1/4") male spade tabs and accommodating 0.5mm² to 1.6mm² cable sizes (22–16 AWG), these connectors provide a tight, vibration-resistant friction fit. They are the go-to choice for clean component switching in automotive, marine, and industrial control systems.
Featuring a funnel-entry insulation design, these quick-disconnects eliminate stray, split wire strands by guiding your conductor directly into the internal crimping barrel for a fast, flawless termination.
Key Features
-
Vibration-Resistant Grip: Designed with detent dimples inside the female sleeve to securely lock onto male tabs, preventing accidental disconnects under harsh physical movement.
-
Premium Tin-Plated Brass: Offers high mechanical strength and exceptional corrosion resistance—vital for maintaining strong signal and power transmission over time.
-
Flared PVC Insulation: The easy funnel-entry sleeve stops wire strands from snagging or folding back, accelerating high-volume harness building.
-
Industry Compliance: Built to meet rigorous Australian and international electrical trade standards for reliable low-voltage termination.
-
Commercial 100-Pack: Packaged in a durable trade bulk-pack to ensure your workshop drawer or field kit is always fully loaded.
Technical Specifications
| Feature |
Specification |
| Terminal Type |
Pre-Insulated Female Quick Disconnect / Spade |
| Insulation Color |
Red (Industry standard for 0.5 – 1.6mm² / 22–16 AWG) |
| Tab / Interface Size |
6.4mm x 0.8mm (1/4" Standard) |
| Pack Quantity |
100 Pieces |
| Cable Compatibility |
0.5mm² to 1.6mm² |
| Voltage Rating |
Up to 300V max |
| Temperature Range |
-40°C to +105°C |
| Material |
Tin-plated brass body, premium PVC insulation sleeve |
Applications
Perfect for relays, switches, fuse blocks, solenoids, speakers, and instrument panels across:
-
12V / 24V Automotive, 4WD, and Caravan electrical builds
-
Marine dashboards and bilge pump wiring
-
Commercial switchgear and automation control panels
-
Custom audio-visual or secondary battery systems
