JBL 5000N ADVANCED MARINE HEAD UNIT
Product Add-ons
Couldn't load pickup availability
he JBL JAM5000N is the advanced command center of JBL's gauge-style marine receivers. While it fits the same standard 3.5" cutout as its smaller siblings, it introduces a vibrant color display and high-end networking capabilities that make it a true hub for your boat’s audio system.
A Smarter, More Connected Dash
The JAM5000N is designed for boaters who want more than just a radio—they want a fully integrated marine ecosystem.
-
NMEA 2000® Certified: This unit is built to talk to your boat's existing network. You can control your music directly from your Garmin, Simrad, or Lowrance multi-function display (MFD).
-

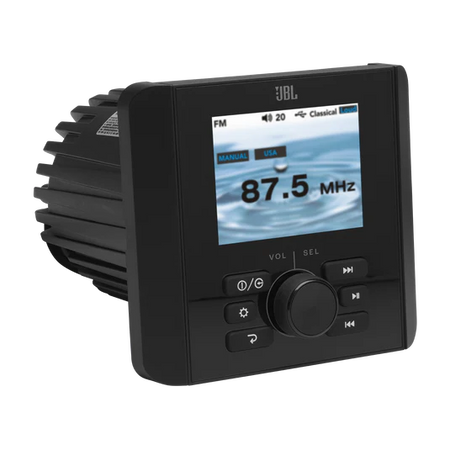

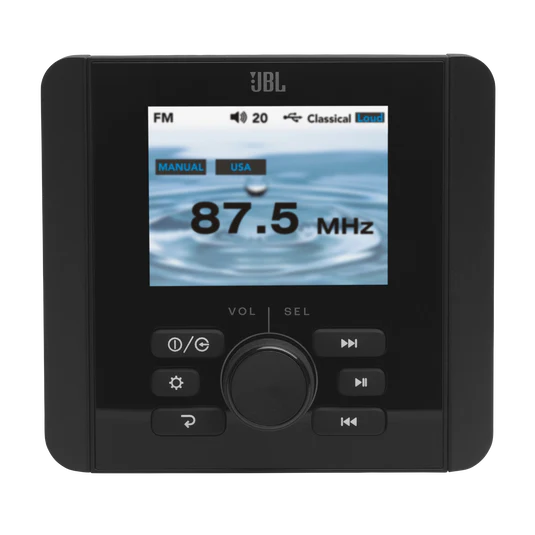

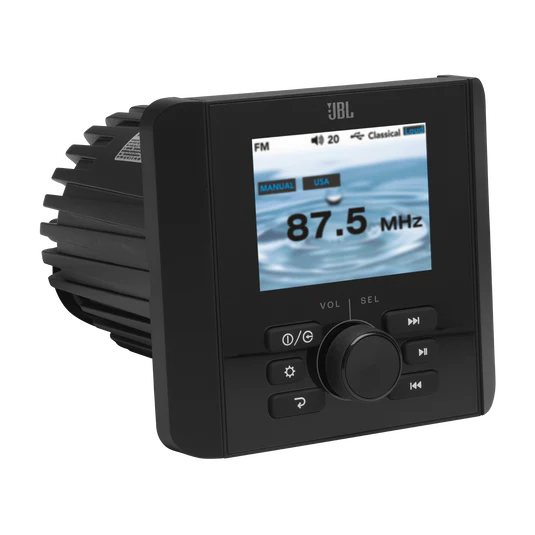

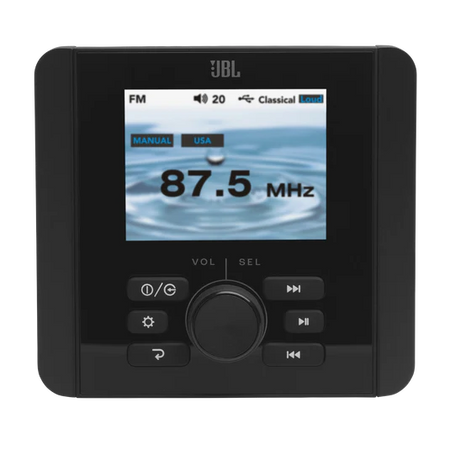

2.8" Color TFT Display: Features a full-color, sunlight-viewable screen. The intuitive interface makes navigating playlists and settings much easier even in the glare of open water.
-
3-Zone Control: Independently manage volume and audio for three separate areas of the boat (e.g., Bow, Cockpit, and Tower). Each zone includes left, right, and subwoofer channels.
-
Rear Camera Input: A unique safety feature for this class—connect a backup or engine room camera and view the live feed directly on the 2.8" color screen.
Audiophile Power & Stability
JBL engineered this unit to drive more speakers with better clarity and professional-grade signal strength:
-
2-Ohm Stable: Unlike many entry-level units, the JAM5000N is 2-ohm stable. This means you can wire two pairs of 4-ohm speakers in parallel to a single channel without overworking the internal amp.
-
Punchy Output: Delivers a robust 25W RMS x 4 (at 4 ohms), providing significantly more "headroom" and volume than the JAM3000.
-

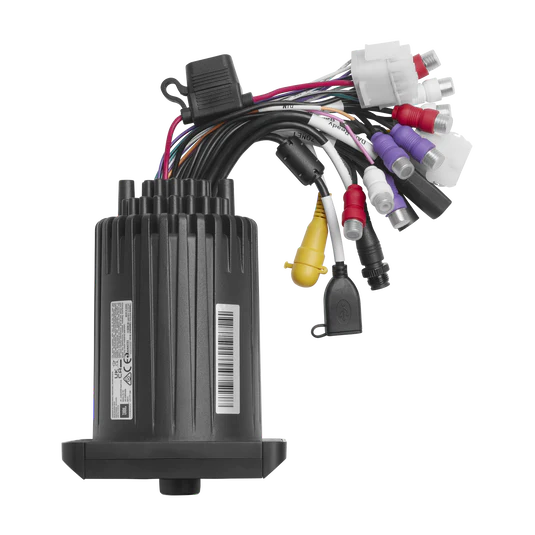

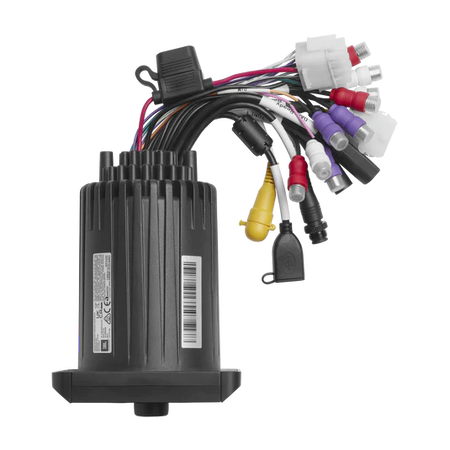

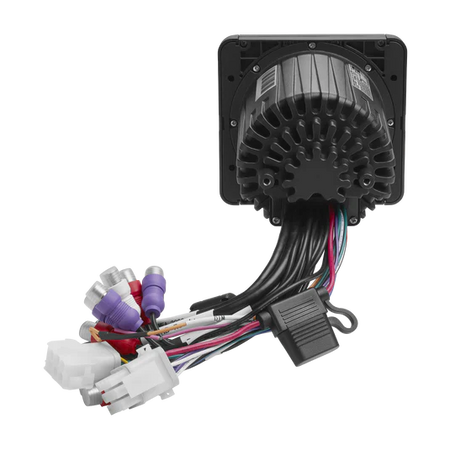

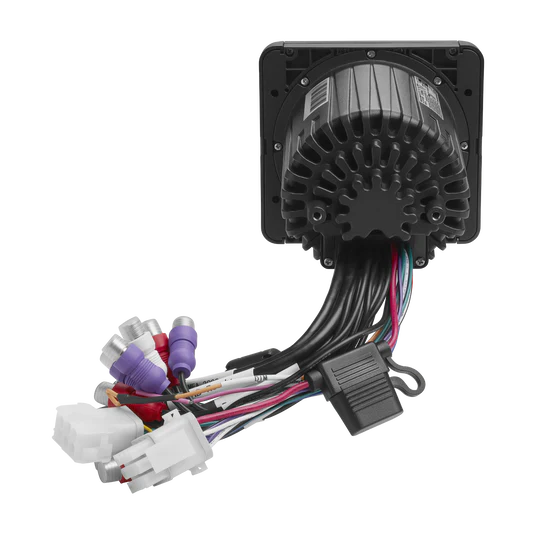

9-Channel / 4V Pre-outs: Features three sets of high-voltage (4V) RCA outputs. High voltage ensures a cleaner, noise-free signal when sending audio to external amplifiers like the JBL Apex series.
Connectivity & Sources
-
Bluetooth® 5.3 Streaming: Utilizes the latest Bluetooth standard for faster pairing and a rock-solid wireless connection.
-
MFi (Made for iPhone): Fully compatible with Apple devices for seamless USB control and charging.
-
Global Tuner + DAB+ Ready: Access AM, FM, and Weather Bands globally. It is also DAB+ ready (requires a compatible module) for digital radio regions.
Technical Specifications
| Feature | Specification |
| Display | 2.8" Full-Color TFT LCD |
| Water Resistance | IP66 (Front Panel) |
| RMS Power | $25\text{W} \times 4$ (@ 4 ohms) |
| Max Power | $55\text{W} \times 4$ |
| Zones | 3 Zones (Independent Control) |
| Networking | NMEA 2000® Certified |
| Pre-outs | 9-Channel (3 Sets of 4V RCA) |
| Cutout Diameter | 3.44" (87.5mm) |
Why Choose the JAM5000N?
The JAM5000N is the right choice if you have a multi-zone boat (like a large pontoon or center console) and want to control your music through your GPS/Chartplotter. The added safety of the rear camera input and the high-voltage pre-outs make it a significant performance jump for serious marine audio setups.
