JL Audio Marine Speaker RGB LED Light Controller MLC-RW
RRP
Product Add-ons
Couldn't load pickup availability
JL Audio MLC-RW Marine Lighting Controller
The Command Center for Onboard Illumination. Smooth Rotary Color Control. Total LED Synergy.
Unlock the full visual spectrum of your boat’s sound system. The JL Audio MLC-RW is a premium, heavy-duty marine RGB LED lighting controller engineered specifically to master the TransFlex™ and TransFlective™ multi-color lighting arrays embedded within JL Audio M6 and M3 series marine speakers and subwoofers.
Instead of forcing you to pull out a smartphone app or carry an easily lost wireless remote control while navigating open water, the MLC-RW puts complete aesthetic mastery into a dash-mounted marine rotary knob. With a simple press and turn, you can instantly dial in the perfect cockpit ambiance, synchronize color cross-fades, adjust brightness, or match the exact accent lighting running through your luxury center console or wake tower.
Key Features
-

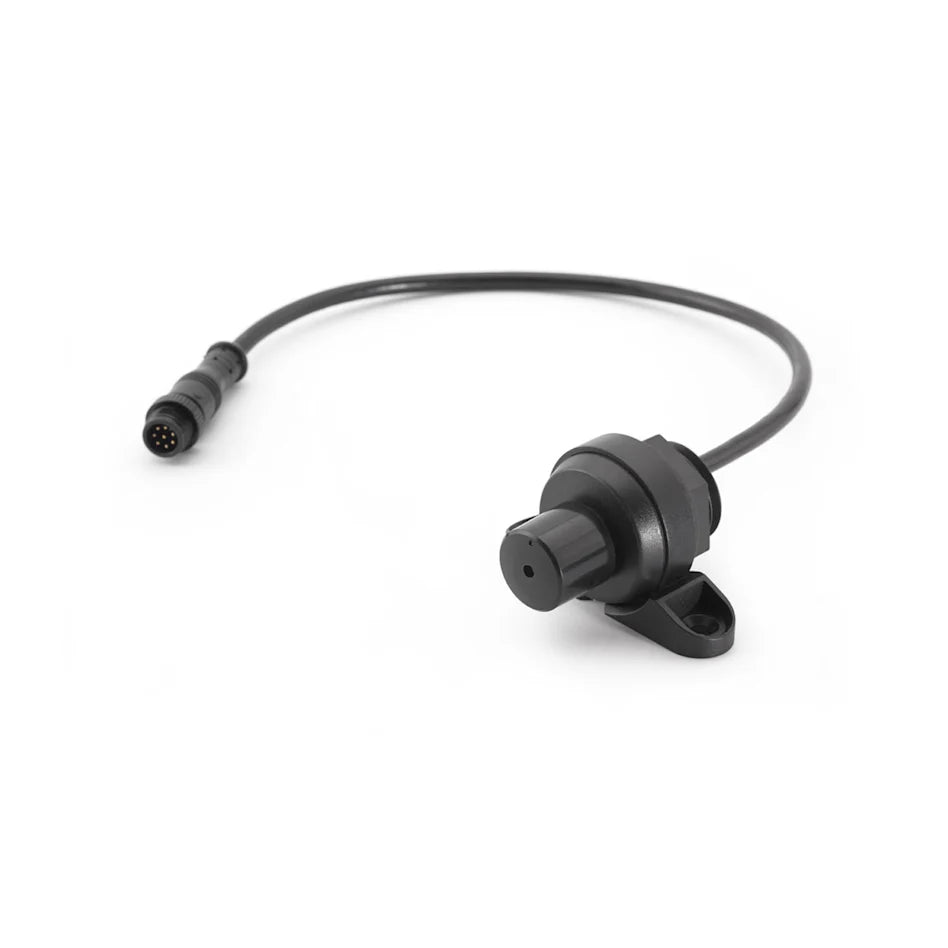

Tactile Rotary Dash Control: The rugged, surface or flush-mountable rotary controller button lets you cycle lighting modes, adjust brightness, or dial in thousands of custom colors entirely by touch—perfect for quick adjustments at high speeds or in heavy seas.
-
Massive 30-Amp Power Capacity: Built with a high-current processor module that easily pipes out up to 30 Amps of continuous power. This allows you to chain and control up to 12 marine speakers or subwoofers simultaneously from a single compact unit.
-
Dynamic Visual Modes: Outfitted with premium internal lighting programs. Select static colors to set a relaxing cruise tone, or activate smooth, slow color-cycling loops to elevate party atmospheres at the sandbar.
-
True Marine® Certified Hardware: Fully sealed from the inside out to handle the grueling realities of open bow boats and wet bilge compartments. The processor box features integrated strain-relief wire glands, while the control knob carries an IPX7 submersible rating.
-
Intelligent Overcurrent Defense: Equipped with smart digital circuit protection. If a wire gets pinched during installation or rough water running, the controller instantly cuts power to protect your expensive speaker LED arrays from electrical damage.
Technical Specifications
| Feature | Specification |
| Model Number | MLC-RW (96360) |
| Operating Voltage | 12V DC (Negative Ground Only) |
| Continuous Output Capacity | 30 Amps Maximum Total |
| Channels Supported | Red, Green, Blue (RGB Common Anode) |
| Control Interface | Weatherproof Dash-Mounted Rotary Encoder |
| Waterproof Rating (Knob) | IPX7 Submersible Armor |
Dimensions & System Mapping
-
Main Control Box Width: 3.86 in / 98 mm
-
Main Control Box Height: 3.07 in / 78 mm
-
Main Control Box Depth: 1.61 in / 41 mm
-
Rotary Controller Knob Cable Length: 12 ft / 3.66 m (Included)
Installation Pro-Tip: The MLC-RW features a built-in memory state architecture. If you wire the main power lead to your boat's auxiliary accessory switch or battery isolator, it will automatically remember your last color selection, fade speed, and brightness level the moment you switch the boat back on.

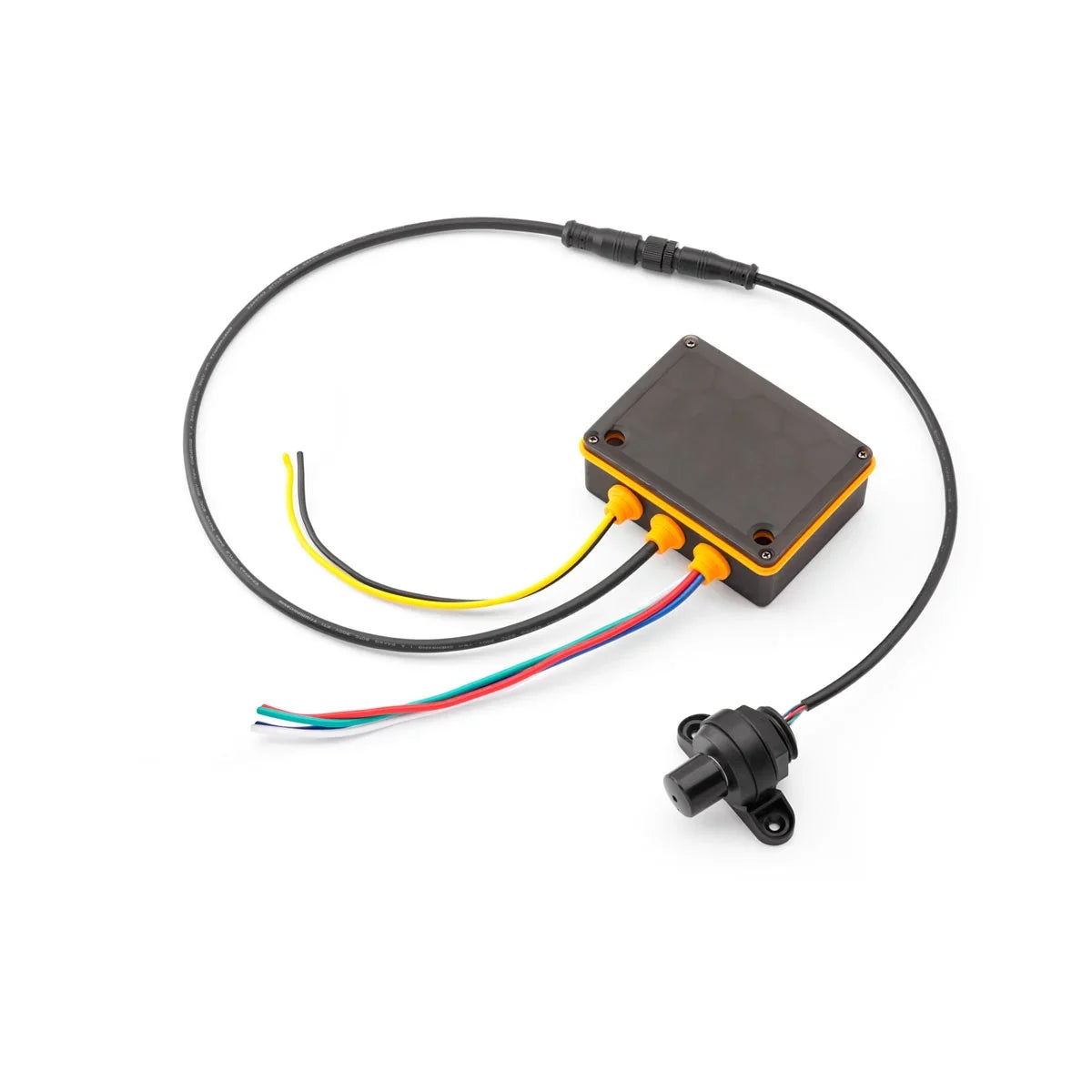

What’s in the Box? Includes one MLC-RW main lighting control enclosure, one dash-mountable marine rotary controller knob with a 12-foot harness extension, premium marine mounting hardware, and an intuitive color-coded electrical wiring guide.
