Service Kit (Major) For Volvo Penta D11 Pump & JMP JR-VP0110DB - JSK0106
by Service Kits
Original price
$1,375.00
-
Original price
$1,375.00
Original price
$1,375.00
$1,375.00
-
$1,375.00
Current price
$1,375.00
Major Service Kit to suit Volvo Penta D11 Series engines with seawater pump 22063494 and JMP pump JPR-VP0110DB.
Kit contents in table below. All aftermarket parts which are interchangeable with Volvo Penta parts.
This is JMP Marine part JSK0106.

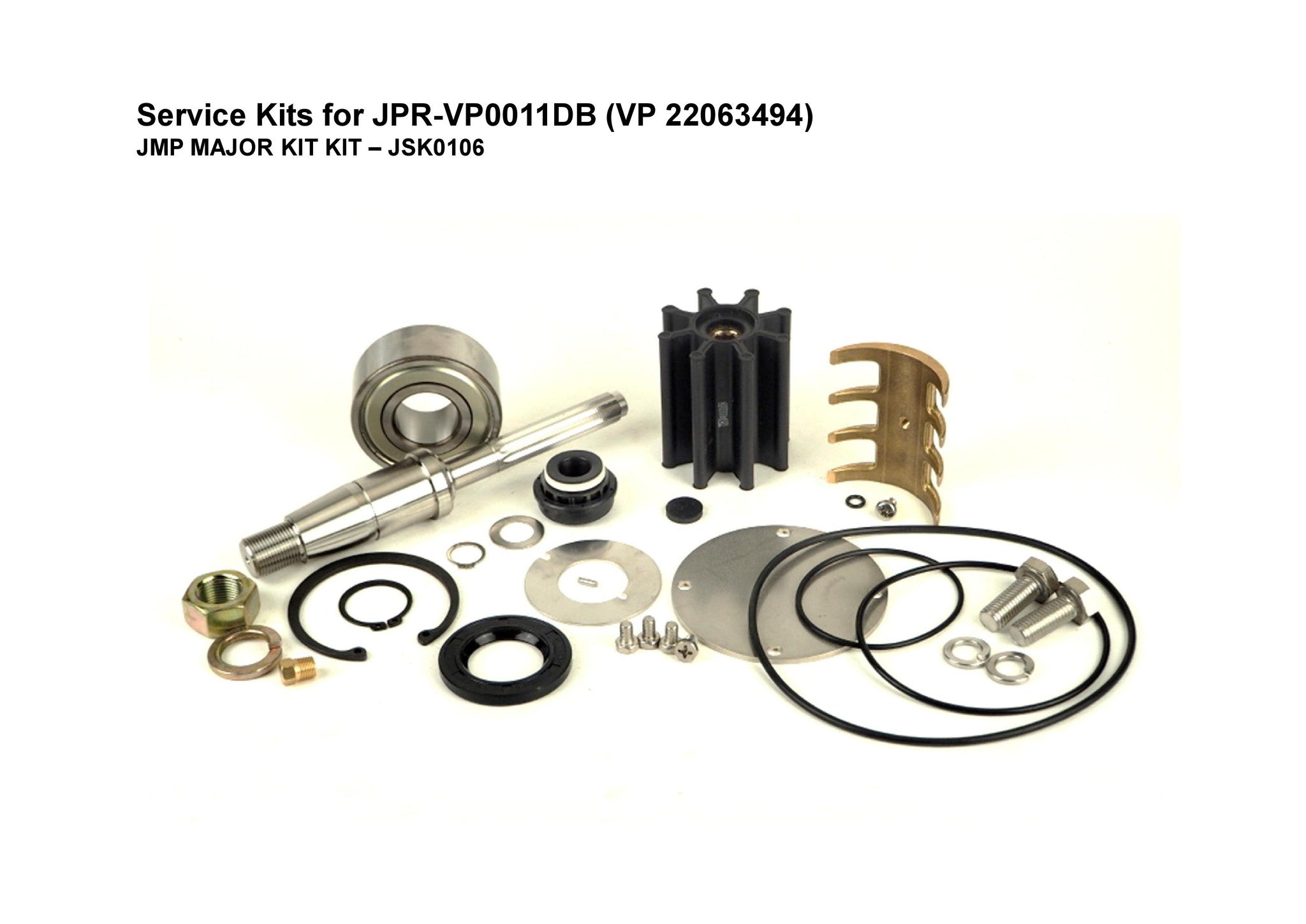

Kit includes the following items interchangeable with Volvo Penta P/N
| No. | Description | Qty | Volvo Penta | Compatibility | JMP Number | In Kit |
|---|---|---|---|---|---|---|
| Sea water pump | 1 | 22063494 | Yes | JPR-VP0110DB | ||
| 1 | Bearing | 1 | 3587881 | Yes | BER0059 | ✔ |
| 2 | Screw, End Cover | 4 | 3583605 | Yes | BOL0080 | ✔ |
| 3 | Hexagon nut | 1 | 3587886 | Yes | BOL0160 | ✔ |
| 4 | Spring Washer | 1 | 941914 | Yes | BOL0161 | ✔ |
| 5 | Cam Set | 1 | 3589908 | Yes | CAMSET0037 | ✔ |
| Cam | 1 | 3589908 | Yes | CAM0037 | ✔ | |
| Screw, Cam | 1 | 3583605 | Yes | BOL0002 | ✔ | |
| O-ring, Cam | 1 | 3583614 | Yes | ORG0002 | ✔ | |
| 6 | End cover | 1 | 3587879 | Yes | COV0047 | ✔ |
| 7 | Gear | 1 | 3161258 | Yes | GEA0021 | |
| 8 | Impeller Kit | 1 | 21730348 | Yes | 7446K | |
| Impeller | 1 | 3819486 | Yes | 7446-01 | ✔ | |
| O-ring, End Cover | 1 | 3587885 | Yes | ORG0067 | ✔ | |
| 9 | Mechanical Seal | 1 | 3583609 | Yes | MCS0046 | ✔ |
| 10 | O-ring, Mounting (Inner) | 1 | 925259 | Yes | ORG0059 | ✔ |
| 11 | O-ring, Mounting (Outer) | 1 | 949735 | Yes | ORG0070 | ✔ |
| 12 | Pin, Wear Plate | 1 | 888387 | Yes | PIN0001 | ✔ |
| 13 | Oil Seal | 1 | 3587882 | Yes | RET0011 | ✔ |
| 14 | Shaft | 1 | 21380884 | Yes | SHA0120 | ✔ |
| 15 | Snap Ring (Small) | 1 | 812951 | Yes | SNP0005 | ✔ |
| 16 | Snap Ring (M-Seal) | 1 | 809444 | Yes | SNP0006 | ✔ |
| 17 | Snap Ring (Large) | 1 | 812953 | Yes | SNP0014 | ✔ |
| 18 | Washer | 1 | 888388 | Yes | SPC0019 | ✔ |
| 19 | Wear Plate | 1 | 807589 | Yes | WER0029 | ✔ |
| 20 | Service Kit - Minor | 1 | N/A | Yes | JSM0086 | |
| 21 | Service Kit - Major | 1 | N/A | Yes | JSK0106 |
