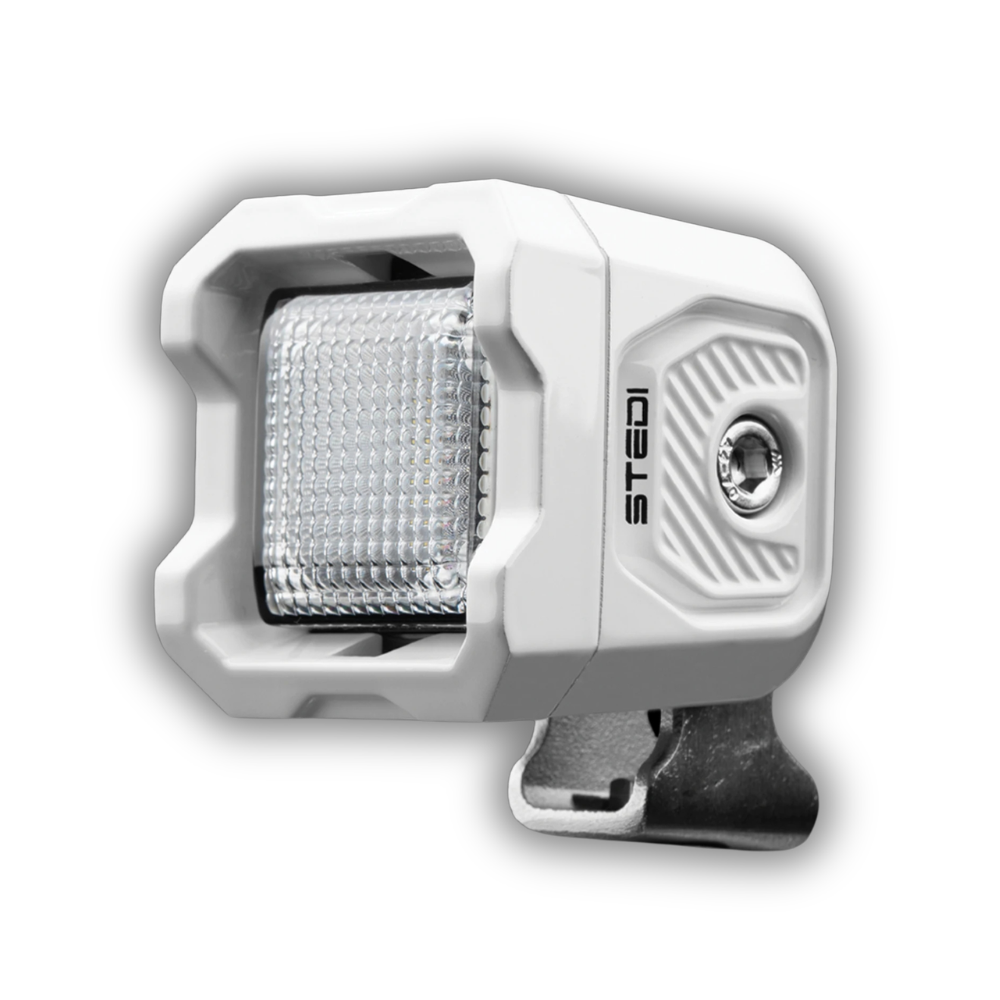

STEDI™ G1 Marine LED Flood Light
Small in scale, massive in output. The STEDI™ G1 Marine LED Flood Light packs 1,000 lumens of ultra-bright, wide-coverage illumination into an ultra-compact housing designed to endure harsh saltwater environments.
Whether mounted on a boat deck, hardtop, fishing tower, or task area, the G1 Marine delivers a crisp 5700K beam that lights up your immediate surroundings without causing eye fatigue or glare.
Key Highlights
-
Built Marine-Grade Tough: Features an isolated earth design, tinned marine wiring, 316 stainless steel mounting hardware, and heavy-duty AkzoNobel™ marine powder coating to resist corrosion in harsh saltwater conditions.
-
Maximum Weather & Impact Protection: Rated to IP68 & IP69K standards, keeping it completely sealed against dust ingress and high-pressure, high-temperature water jets. Shock-tested to 30G and vibration-tested to 5G forces.
-
Zero Radio Interference: CISPR 25 Class 3 certified to ensure zero electromagnetic interference with sensitive onboard electronics, including VHF radios, GPS, mobile units, and Wi-Fi.
-
CRISP Daylight Illumination: Fitted with a high-efficiency CREE XP-L2 LED outputting 750 tested lumens (1,000 raw lumens) at 5700K, creating a wide 21-meter flood beam for near-field task lighting.
-
Dual Voltage Compatibility: Operates seamlessly across both 12V and 24V marine electrical systems with an ultra-low 0.8A current draw at 13.5V.
Technical Specifications
| Feature |
Specification |
| LED Chip |
1x CREE XP-L2 |
| Lumens |
1,000 LM (Raw) / 750 LM (Tested) |
| Beam Profile |

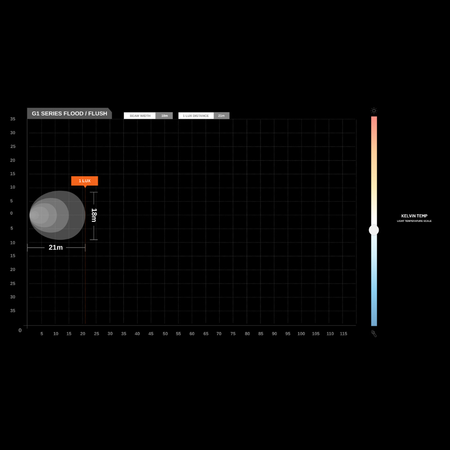

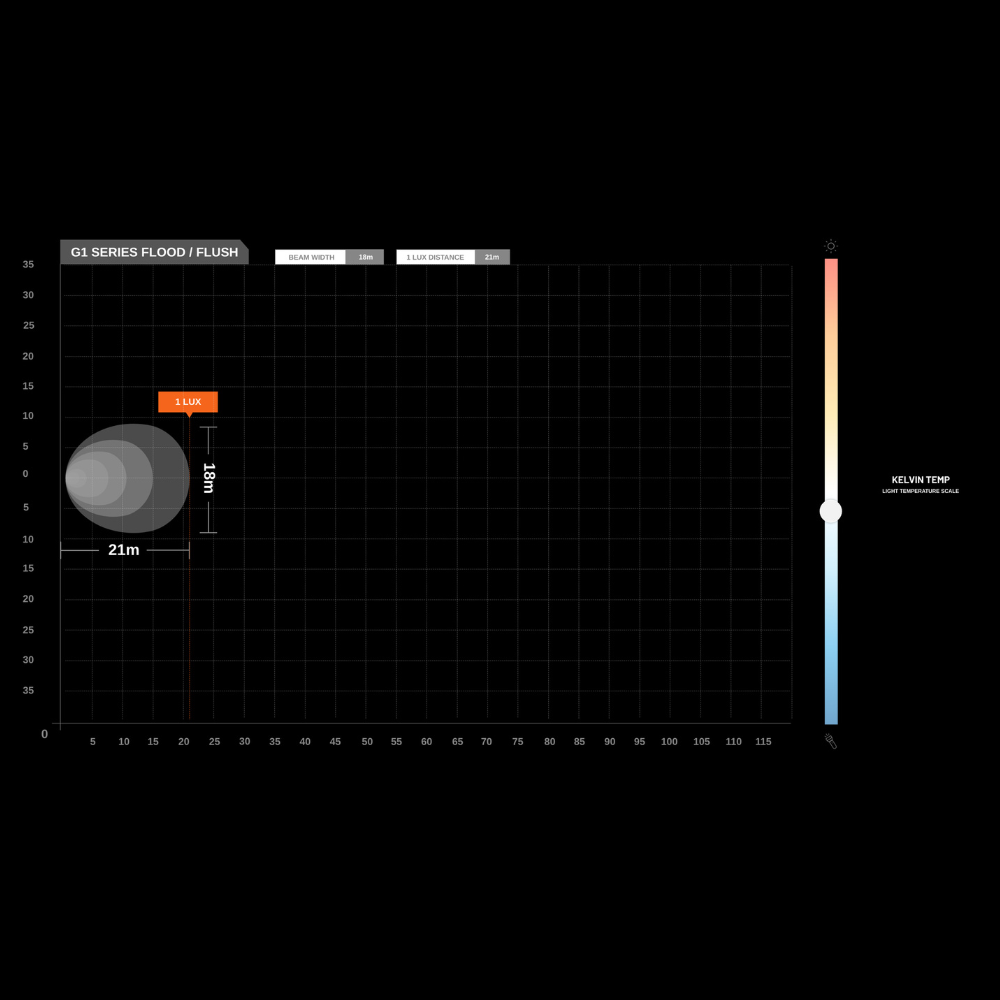

Flood (1 LUX @ 21m) |
| Colour Temperature (CCT) |
5700K Crisp White |
| Operating Voltage |
12V & 24V Compatible |
| Amp Draw |
0.8A @ 13.5V |
| IP Rating |
IP68 & IP69K (Dustproof & Waterproof) |
| EMC Rating |
CISPR 25 Class 3 |
| Housing & Lens Material |
Die-Cast Aluminium with Polycarbonate Lens |
| Fasteners & Bracket |
316 Stainless Steel |
| Weight |
0.305 kg |
| Lifespan |
50,000+ Hours |
| Warranty |
24 Months |
What’s Included in the Box
-
1x STEDI™ G1 Marine Flood Light
-
1x STEDI™ Protective Cover (White)
-
1x 316 Stainless Steel Mounting Bracket
-
1x Complete Stainless Steel Hardware Set
-
1x 2-Pin Male Connector
