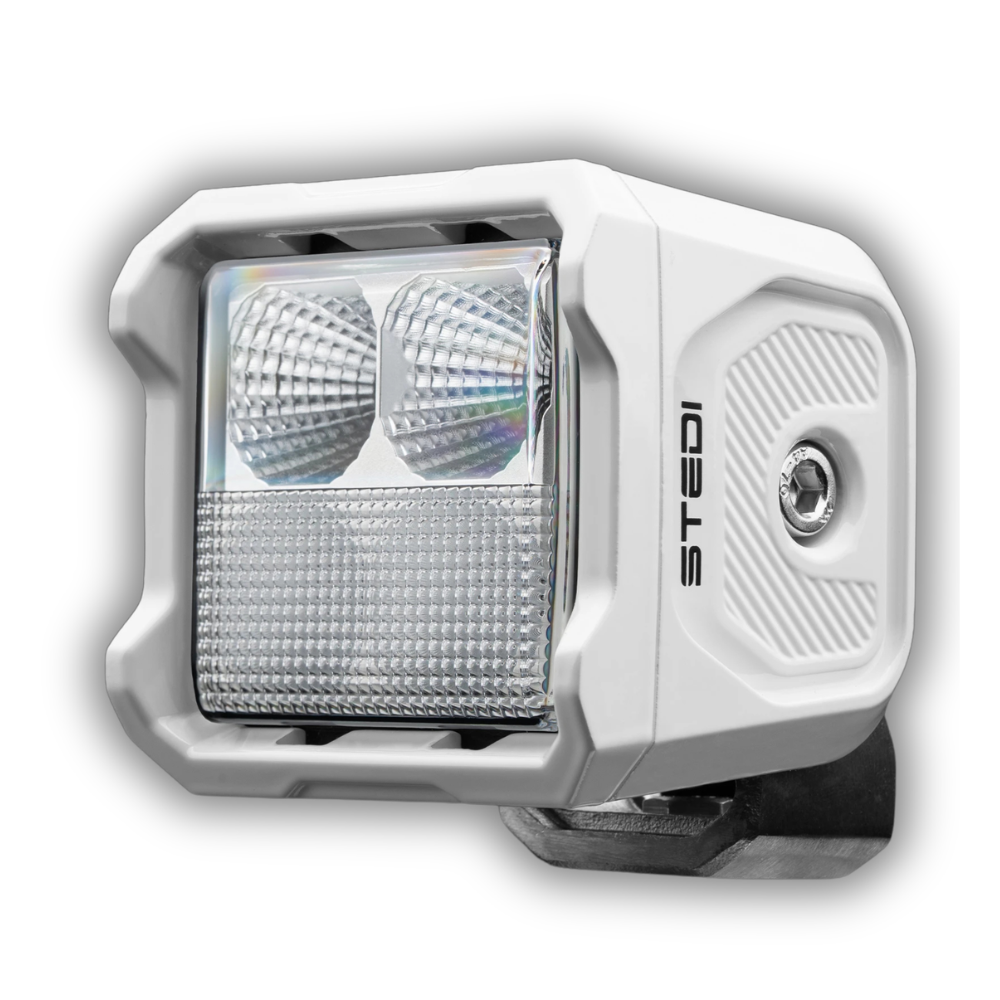

STEDI™ G4 Marine Dual Colour LED Light (White / Red)

Dual-function performance to protect your night vision. The STEDI™ G4 Marine Dual Colour Light combines two high-output 5700K white LEDs for bright daylight illumination with two 620nm red LEDs designed to preserve natural night-adjusted vision during night fishing, chart reading, or deck operations.

Key Highlights

  • Dual-Colour Functionality: Features 2x 10W white LEDs for max visibility (1,500 tested lumens) and 2x 10W red LEDs (480 tested lumens) at 620nm, allowing independent operation depending on task requirements.

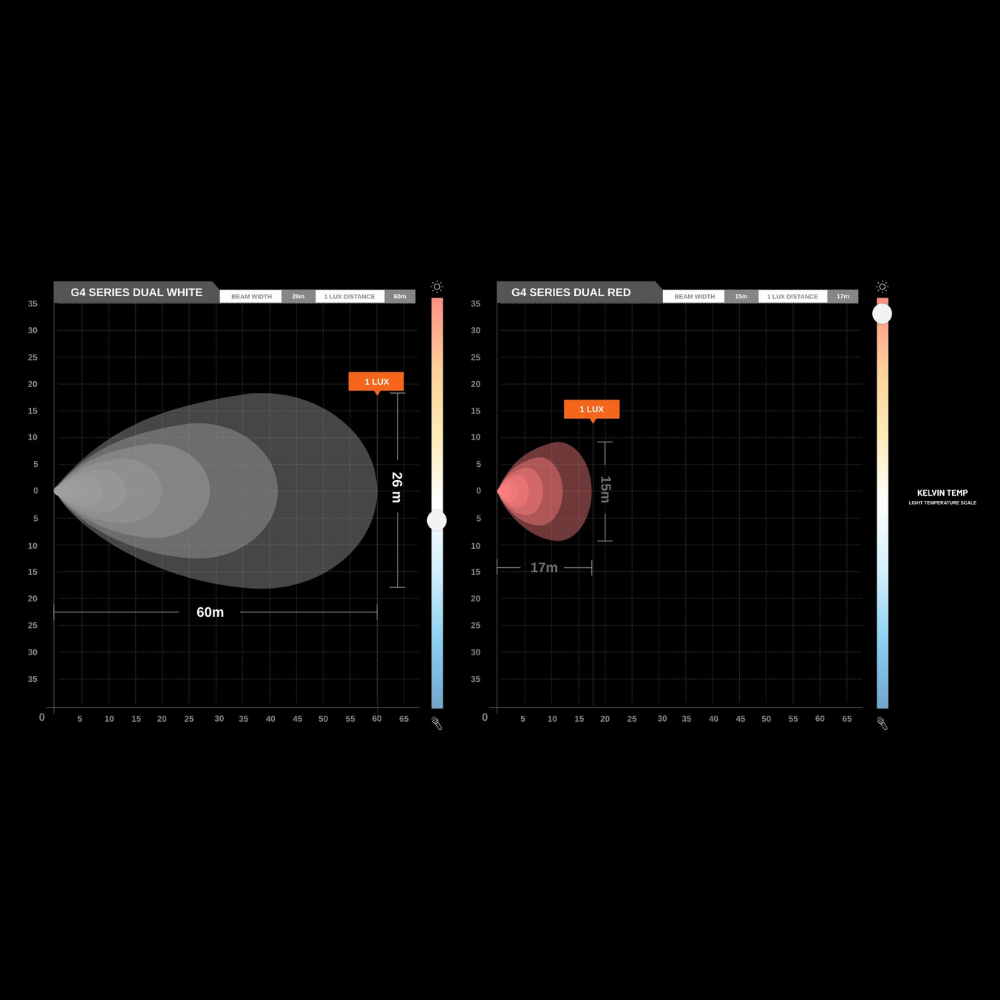

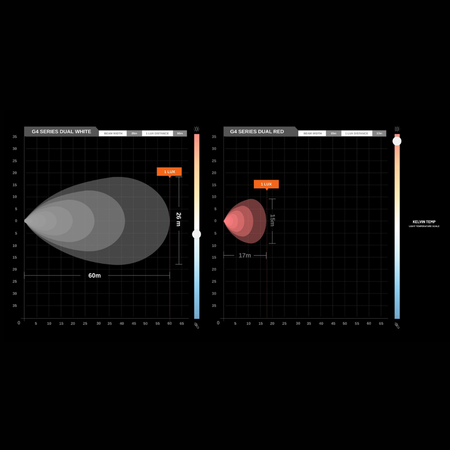

  • 60° Wide Diffused Optics: Projects a broad 60° lateral flood throw reaching 60m length by 26m width in white mode, and an ultra-diffused 18m length by 15m width spread in red mode.

  • Saltwater Marine Specification: Engineered with an isolated earth, tinned marine cabling, 316 stainless steel bracket and hardware, and a durable AkzoNobel™ marine powder-coated die-cast housing.

  • Maximum Weather & Shock Defense: IP68 & IP69K rated to withstand high-pressure, high-temperature washdowns and total immersion. Tested to endure 30G shock loads and 5G continuous vibration.

  • Zero RF Noise: CISPR 25 Class 3 certified to suppress electromagnetic noise, ensuring zero interference with VHF radios, mobile receivers, GPS, or Wi-Fi.

  • Includes 3-Pin DT Wiring: Features an updated 3-pin Deutsch connector setup to independently trigger white and red light outputs from your helm or switch panel.

Technical Specifications

Feature Specification
LED Chips 4x CREE XP-L2 (2x White, 2x Red)
Lumens (Raw) White: 2,000 LM | Red: 640 LM
Lumens (Tested) White: 1,500 LM | Red: 480 LM
Beam Profile 60° Diffused Flood
Beam Reach (1 LUX) White: 60m (L) x 26m (W) | Red: 18m (L) x 15m (W)
Colour Temperature / Wavelength 5700K (White) / 620nm (Red)
Operating Voltage 12V & 24V Compatible
Amp Draw White: 1.6A @ 13.5V | Red: 1.6A @ 13.5V
IP Rating IP68 & IP69K (Dustproof & High-Pressure Waterproof)
EMC Certification CISPR 25 Class 3
Housing & Lens Material Die-Cast Aluminium with Polycarbonate Lens
Bracket & Hardware 316 Stainless Steel
Connector Type 3-Pin DT Male Connector
Weight 1.002 kg
Lifespan 50,000+ Hours
Warranty 24 Months

What’s Included in the Box

  • 1x STEDI™ G4 Marine Dual Colour Light (White/Red)

  • 1x STEDI™ Protective White Cover

  • 1x 316 Stainless Steel Mounting Bracket

  • 1x Stainless Steel Hardware Set

  • 1x 3-Pin DT Male Connector
