STEDI

STEDI G9 Marine Flood Work Light

Available to Backorder Estimated dispatch in 6-7 business days
Click & Collect - Ready within 2 business hours
Same-Day Dispatch – Express orders before 2pm

RRP

$199.00 AUD inc. GST
Product Add-ons
Marine Petrol Dry Snapback Hat
Marine Petrol Dry Snapback Hat
$29.94 AUD inc. GST
Product details
  • Vendor STEDI
  • SKU ST-07-G9-001

Do you have questions about this product?

Ask an expert!

Description Shipping information

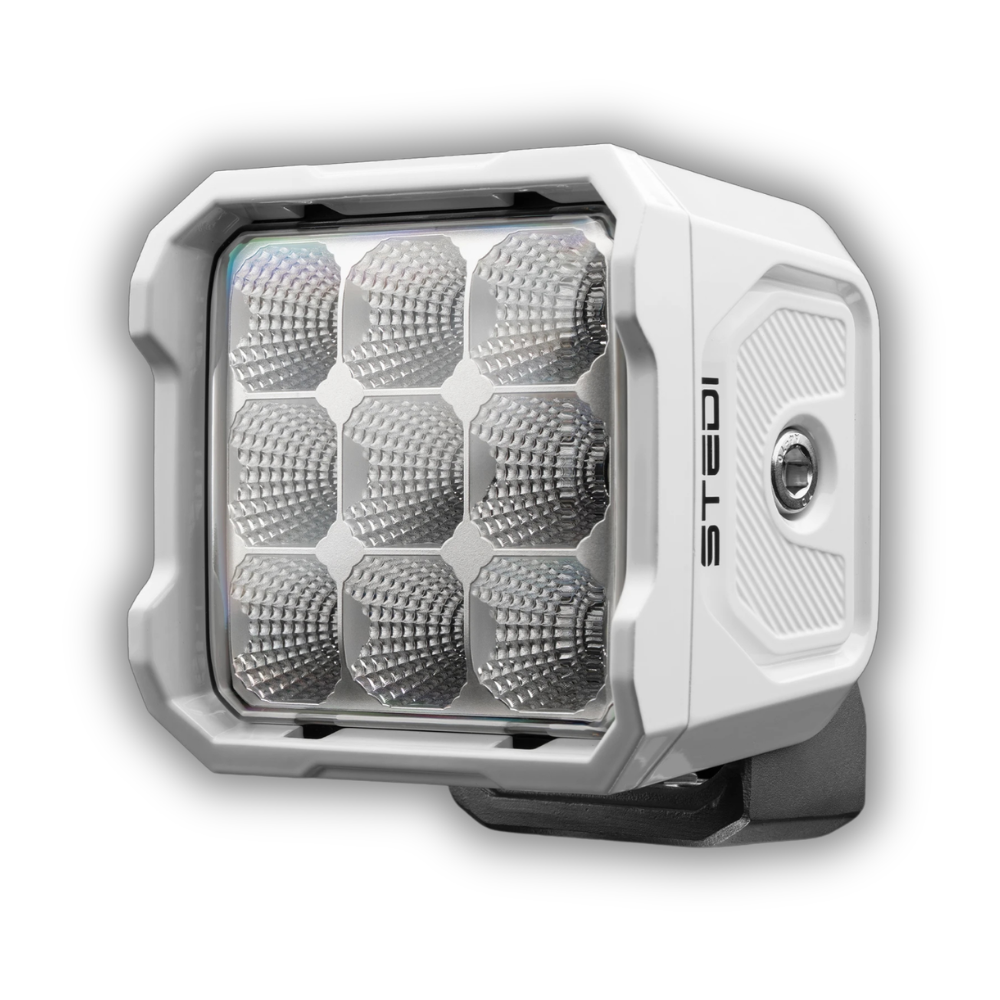

STEDI™ G9 Marine LED Flood Light

Massive 9-LED power for commercial decks and large vessels. Pushing the boundaries of auxiliary marine lighting, the STEDI™ G9 Marine LED Flood Light unleashes 9,000 raw lumens (6,900 tested) across an expansive 65-meter flood-lit zone, providing unmatched illumination for heavy-use marine, commercial, and offshore applications.

Key Highlights

  • Heavy-Duty 9-LED Array: Packed with 9x 10W CREE XP-L2 LEDs to flood large working areas, flybridges, and open decks with exceptional brightness up to 90 meters downrange and 65 meters wide.

  • Corrosion-Proof Marine Architecture: Engineered with an isolated earth, tinned marine wiring, 316 stainless steel bracket and hardware, and a heavy-duty AkzoNobel™ marine-grade powder-coated die-cast housing.

  • Maximum Ingress & Shock Protection: Rated IP68 & IP69K to handle continuous immersion and high-pressure, high-temperature washdowns. Built to endure 30G shock loads and 5G continuous vibration.

  • Zero RF Interference: Certified CISPR 25 Class 3 to keep onboard VHF radios, GPS receivers, radar, and marine communication systems completely free from electrical noise.

  • Crisp 5700K Daylight Spectrum: Emits a clear daylight white beam tuned to enhance visibility and contrast while eliminating glare and reducing eye strain.

  • Dual Voltage Compatibility: Runs smoothly across both 12V and 24V marine setups with a current draw of 7.2A at 13.5V.

Technical Specifications

Feature Specification
LED Chips 9x CREE XP-L2 (10W each)
Lumens 9,000 LM (Raw) / 6,900 LM (Tested)

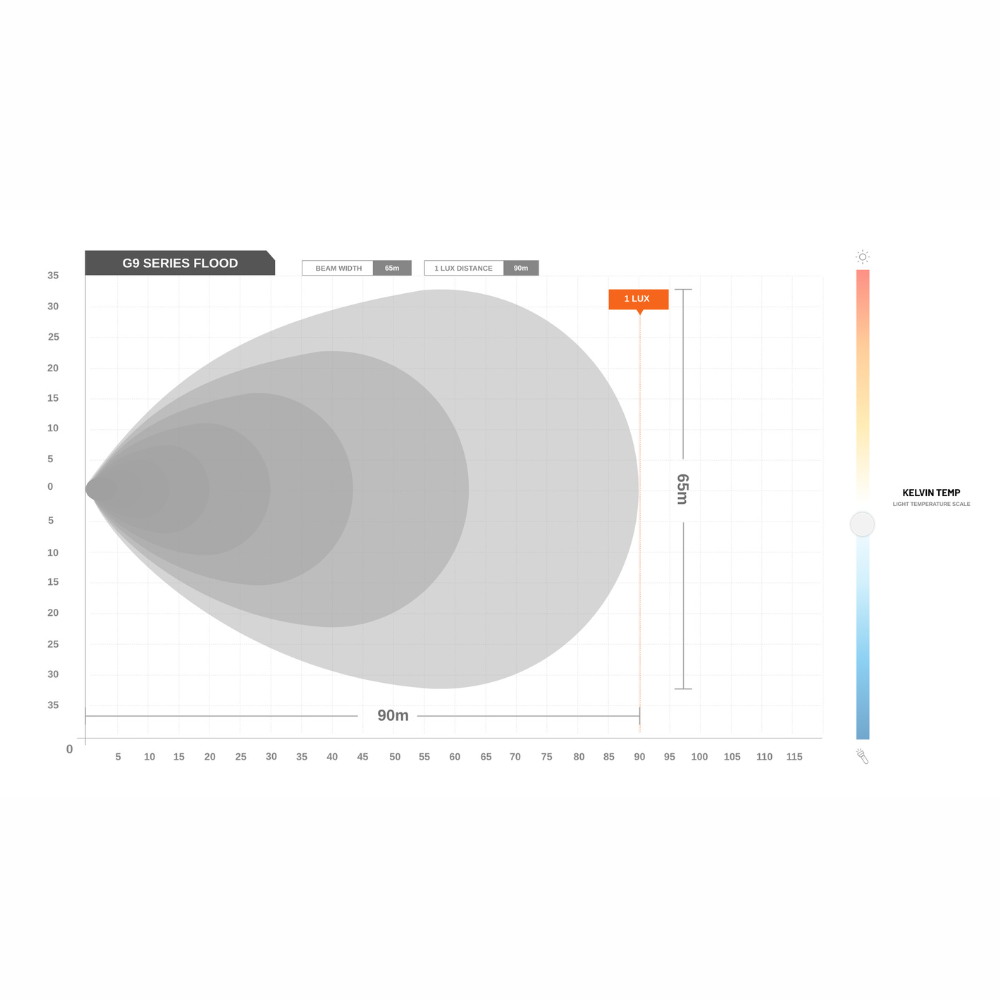

Beam Profile Flood (1 LUX @ 90m / 65m Width)
Colour Temperature (CCT) 5700K Daylight White
Operating Voltage 12V & 24V Compatible
Amp Draw 7.2A @ 13.5V
IP Rating IP68 & IP69K (Dustproof & High-Pressure Waterproof)
EMC Certification CISPR 25 Class 3
Housing & Lens Material Die-Cast Aluminium with Polycarbonate Lens
Bracket & Hardware 316 Stainless Steel
Weight 1.91 kg
Lifespan 50,000+ Hours
Warranty 24 Months

What’s Included in the Box

  • 1x STEDI™ G9 Marine Flood Light

  • 1x STEDI™ Protective White Cover

  • 1x 316 Stainless Steel Mounting Bracket

  • 1x Stainless Steel Hardware Set

  • 1x 2-Pin Male Connector
