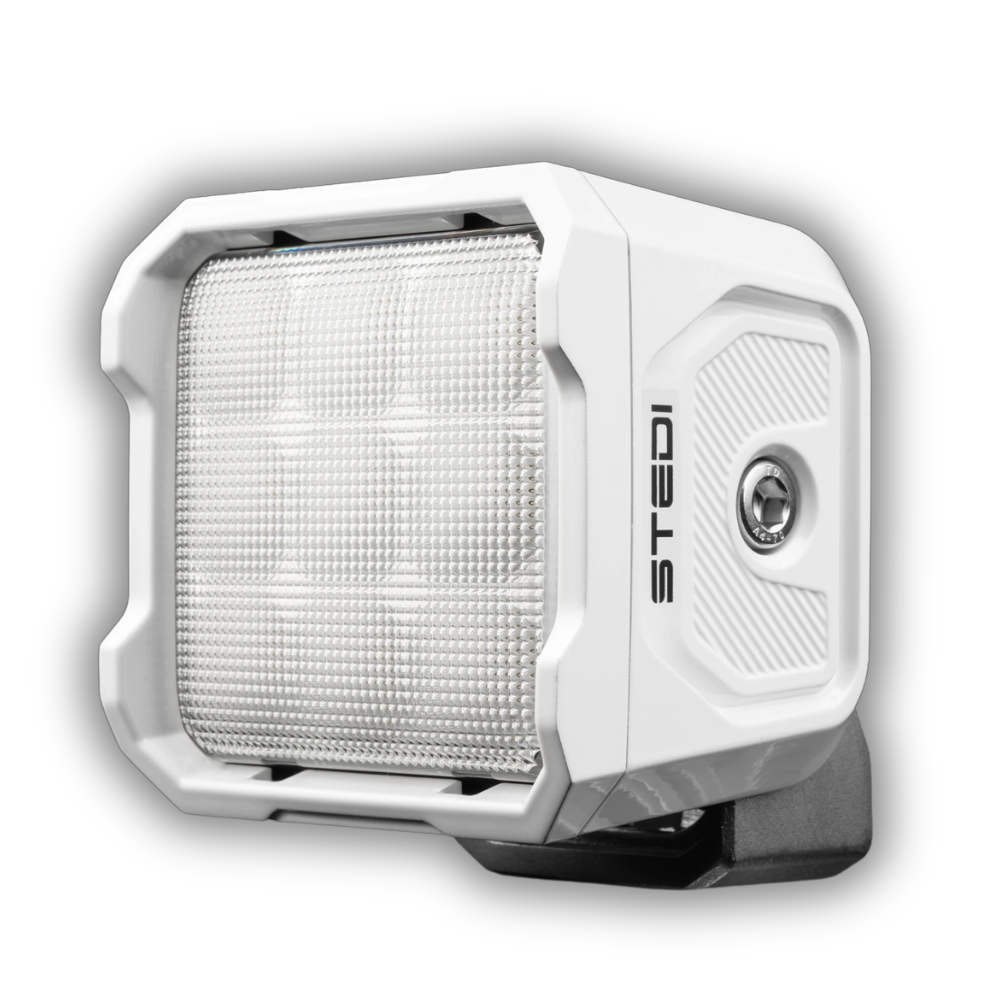

STEDI™ G9 Marine Ultra-Flood LED Light

Maximum 9-LED power with an extreme 80° ultra-diffused beam. Delivering a colossal 9,000 raw lumens (6,900 tested) across an 80° spread, the STEDI™ G9 Marine Ultra-Flood Light is engineered to completely saturate large decks, flybridges, commercial vessels, and working transoms with smooth, wall-to-wall light.

Key Highlights

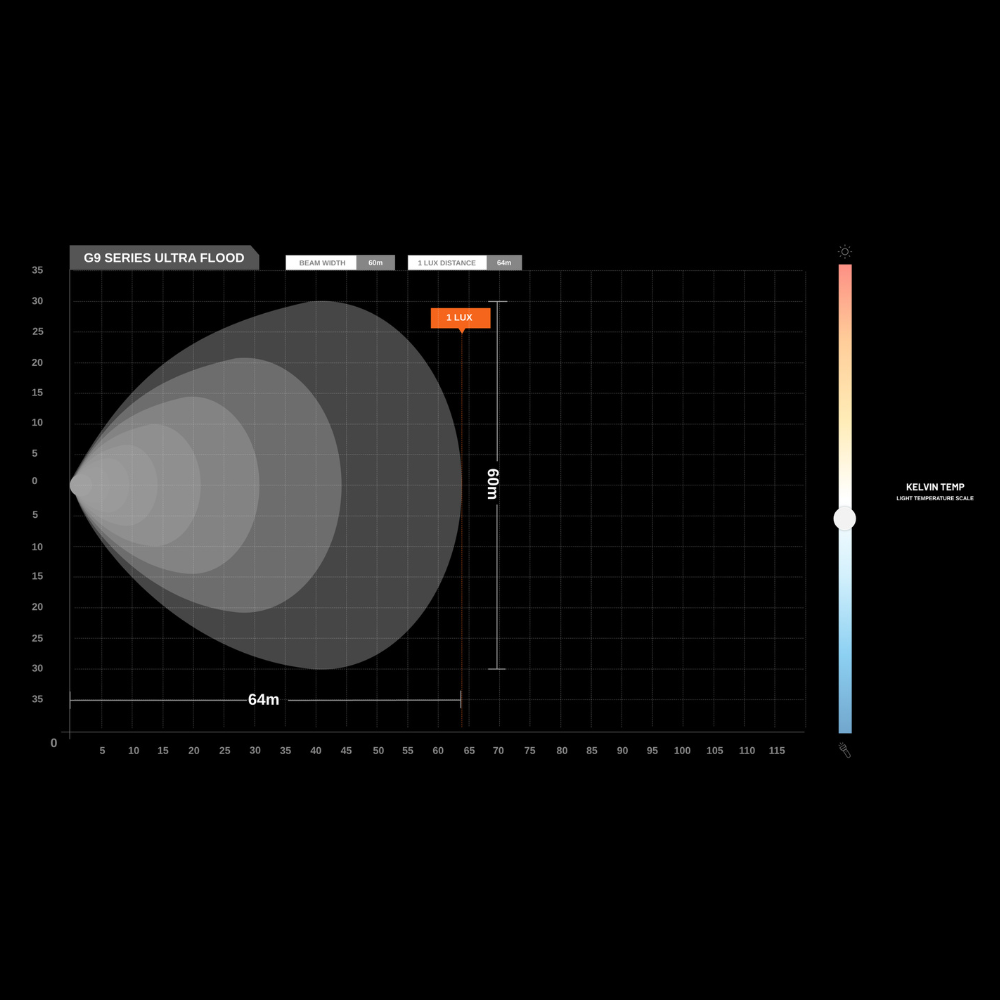

  • Extreme 80° Ultra-Wide Beam: Optimized for total area diffusion, distributing light both laterally and vertically to create a massive 60-meter wide by 64-meter long flood zone at 1 LUX without harsh directional intensity or glare.

  • Pro-Grade 9-LED Architecture: Driven by 9x 10W high-efficiency CREE XP-L2 LEDs, providing immense daylight-white output designed for heavy-duty commercial and recreational marine applications.

  • Corrosion-Proof Marine Spec: Built with an isolated earth, tinned marine wiring, 316 stainless steel bracket and fasteners, and a heavy-duty AkzoNobel™ marine powder-coated die-cast housing.

  • Maximum Heavy-Duty Protection: IP68 and IP69K rated for complete dust sealing and maximum water ingress defense against high-pressure, high-temperature washdowns. Tested to withstand 30G shock loads and 5G continuous vibration.

  • Zero RF Interference: Certified to CISPR 25 Class 3 standards to eliminate electromagnetic noise that could interfere with VHF radios, GPS, radar, or marine navigation systems.

  • Natural 5700K Daylight Spectrum: Emits a natural white beam tuned to enhance visibility and contrast while keeping eye strain and glare to a minimum.

  • 12V & 24V System Compatibility: Operates smoothly across both 12V and 24V marine setups with a current draw of 7.2A at 13.5V.

Technical Specifications

Feature Specification
LED Chips 9x CREE XP-L2 (10W each)
Lumens 9,000 LM (Raw) / 6,900 LM (Tested)
Beam Profile 80° Ultra-Flood (1 LUX @ 64m / 60m Width)
Colour Temperature (CCT) 5700K Daylight White
Operating Voltage 12V & 24V Compatible
Amp Draw 7.2A @ 13.5V
IP Rating IP68 & IP69K (Dustproof & High-Pressure Waterproof)
EMC Certification CISPR 25 Class 3
Housing & Lens Material Die-Cast Aluminium with Polycarbonate Lens
Bracket & Hardware 316 Stainless Steel
Weight 1.91 kg
Lifespan 50,000+ Hours
Warranty 24 Months

What’s Included in the Box

  • 1x STEDI™ G9 Marine Ultra-Flood Light

  • 1x STEDI™ Protective Black Cover

  • 1x 316 Stainless Steel Mounting Bracket

  • 1x Stainless Steel Hardware Set

  • 1x 2-Pin Male Connector
