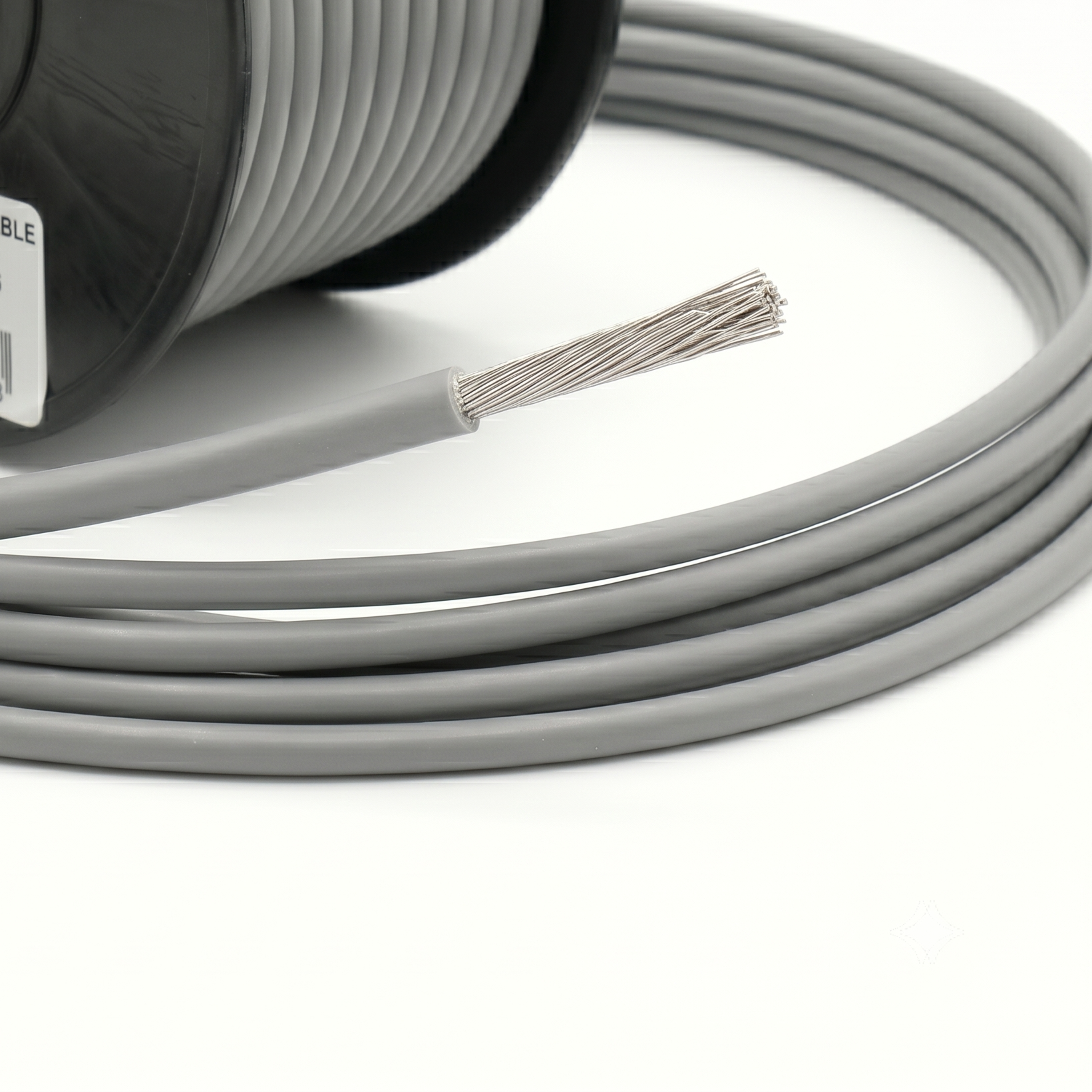

Triangle Marine Grade 1.5mm² Single Core Tinned Power & Control Cable | 200m Roll – Grey
Engineered for the absolute harshest environments on earth, the Triangle UP-XXXD/1C1.5-GRY-200M is a highly specialized, industrial-grade marine cable.
Whether you are wiring commercial shipping vessel control systems, off-grid battery infrastructure, or premium marine electronics, Triangle's world-renowned engineering guarantees unmatched reliability when failure is not an option. This product features an ultra-flexible, single-core 1.5mm² (16 AWG) conductor wrapped in an advanced, high-performance protective compound.
Key Features & Benefits
-
Triangle Marine-Grade Engineering: Built with finely stranded, annealed Tinned Annealed Copper Wire (TACW) complying with IEC 60228 and AS/NZS 1125. The dense tin plating eliminates copper oxidation, providing maximum resistance to salt air, moisture creep, and chemical corrosion.
-
Advanced LSZH / XLPO Thermoset Insulation: Insulated with a proprietary cross-linked, polyolefinic material (HF-90 to IEC 60092-360). This Low Smoke Zero Halogen (LSZH) technology ensures that in the event of a fire, the cable is flame-retardant and will emit zero toxic halogen gases, protecting vital personnel and sensitive gear.
-
Extreme Environmental Resilience: The outer grey insulation is specifically formulated to resist UV degradation, ozone, sea water, petrol, acids, and harsh industrial fluids.
-
Industry-Leading Flex & Bend Profile: Features a remarkably tight minimum bend radius, allowing for smooth, hassle-free routing through incredibly tight conduits, engine firewalls, and complex electrical cabinetry.
-
High Temperature Capacity: Offers an expanded operating temperature envelope from -40°C all the way up to +110°C, vastly outperforming standard PVC cables in severe thermal environments.
Technical Specifications (SKU: UP-XXXD/1C1.5-GRY-200M)
| Feature | Specification |
| Brand | Triangle Cables |
| Conductor Size | 1.5 $mm^2$ (Industry Equivalent: 16 AWG) |
| Core Configuration | Single Core (1C) |
| Insulation Type | LSFLEX® Cross-Linked Polyolefin (HF-90) |
| Color Profile | Grey (GRY) |
| Spool Length | 200 Metre Roll |
| Voltage Rating | 600 / 1000 Volts (Heavy-Duty Rated) |
| Current Rating | 23A Continuous (IEC 60092-352) |
| Compliance | IEC 60092-360 & IEC 60332-3-22 Flame Retardant |
Best-Use Applications
-
Marine Data & Control Systems: Perfect for low-draw power circuits, sensor arrays, instrument clusters, and control signals on small boats to commercial vessels.
-
Commercial DC Control Panels: Ideal for switchboard wiring, monitoring equipment, PLC units, and internal bus system routing.
-
Off-Grid & Industrial Solar: Highly suited for complex control lines in harsh outdoor settings prone to high UV and moisture exposure.
