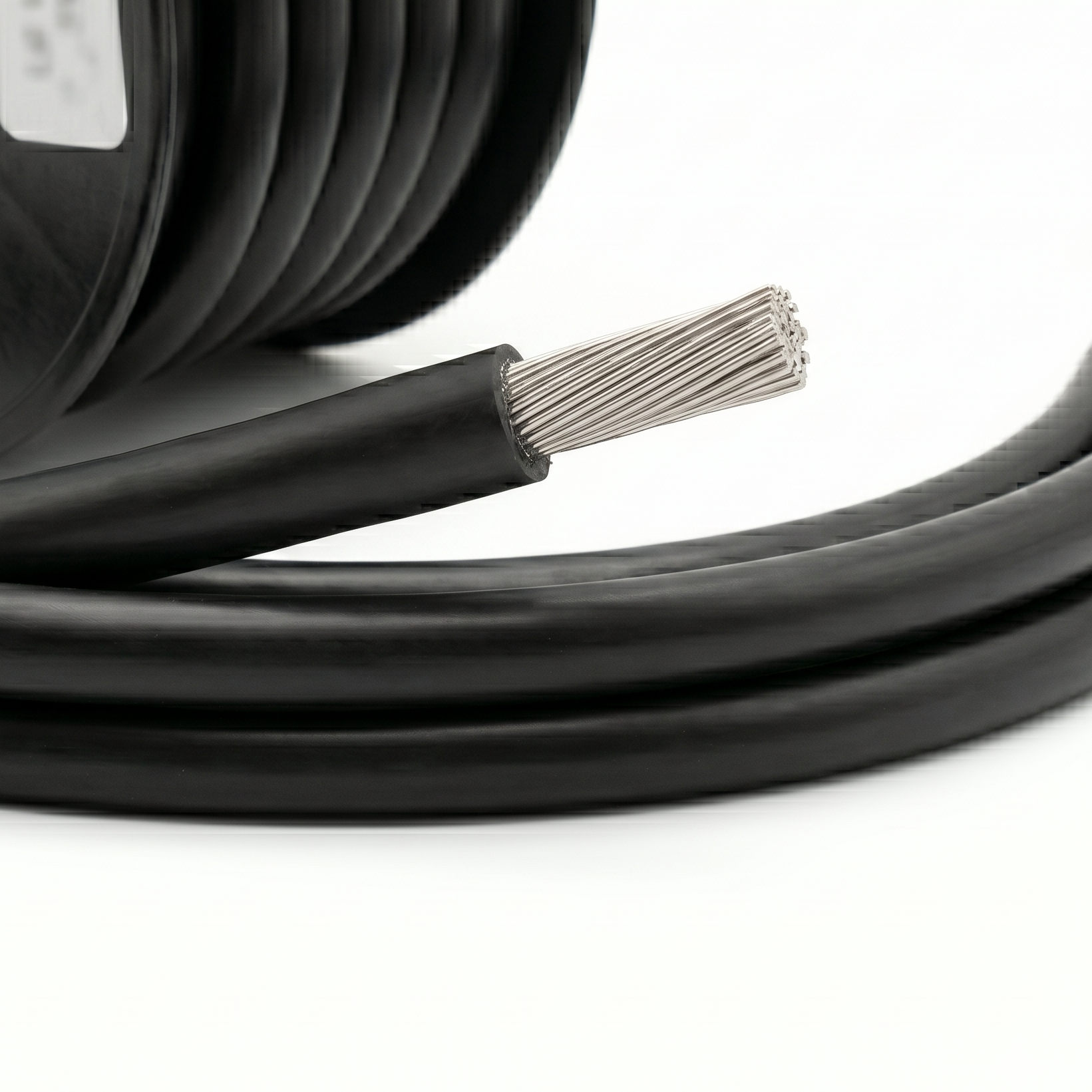

Tyree 1B&S (35mm²) Single Core Marine Tinned Power Cable | MBS149403
Key Features & Benefits
-
Defensive Tinned Copper Shielding: Features a high-conductivity multi-strand Tinned Copper Wire (TCW) conductor compliant with AS/NZS 1125. The sacrificial tin coating completely stops oxidation, salt air, and moisture creep dead in its tracks, preventing "black wire" or "green death" corrosion.
-
High 210A Current Capacity: Safely rated for up to 210 Amps continuous (@ 30°C based on JASO D609). This heavy-gauge wire ensures high-demand components always operate at full capacity without overheating or bottle-necking system performance.
-
High-Temperature Thermal Protection: Encased in thick, RoHS-compliant V90 PVC insulation rated to safely manage temperatures up to 90°C. It is inherently resistant to flame, fuel, oils, and the intense ambient heat found in tightly packed engine bays, canopies, and bilges.
-
High Flexibility for Heavy Gauge: Engineered with a dense, multi-strand layout (492 individual strands), making it significantly more flexible and easier to manipulate around tight structural ribs, bulkheads, or vehicle chassis than stiff industrial wire.
Technical Specifications (MBS149403)
| Feature |
Specification |
| Part Number |
MBS149403 |
| Industry Equivalent |
1 B&S (1 AWG equivalent) |
| Conductor Stranding |
492 strands of 0.32 mm nominal Tinned Annealed Copper |
| Nominal Cross-Sectional Area |
35.0 mm² |
| Amp Rating |
210A Continuous (@ 30°C) |
| Electrical Resistance |
~0.565 $\Omega$/km (@ 20°C) |
| Nominal O.D. (Outer Diameter) |
Approx. 11.4 mm |
| Insulation Thickness |
1.7 mm |
| Voltage Rating |
Extra Low Voltage Only (Up to 120V DC) |
| Compliance |
AS/NZS 1125 (Conductor) & AS/NZS 3808 / 1574 (Insulation/Copper) |
Ideal Applications
High-Output Battery Banks
The absolute go-to choice for heavy-duty battery-to-battery interconnects, parallel banks, high-capacity dual battery smart isolators, and rapid DC-to-DC charging systems.
Large Off-Grid Power Inverters
Critical safety infrastructure for wiring 2000W to 4000W pure sine wave inverters where preventing voltage sag is vital.
High-Draw Equipment Circuits
Perfect for 4WD recovery winches, heavy commercial anchor winches, bow thrusters, and main distribution hub links.
