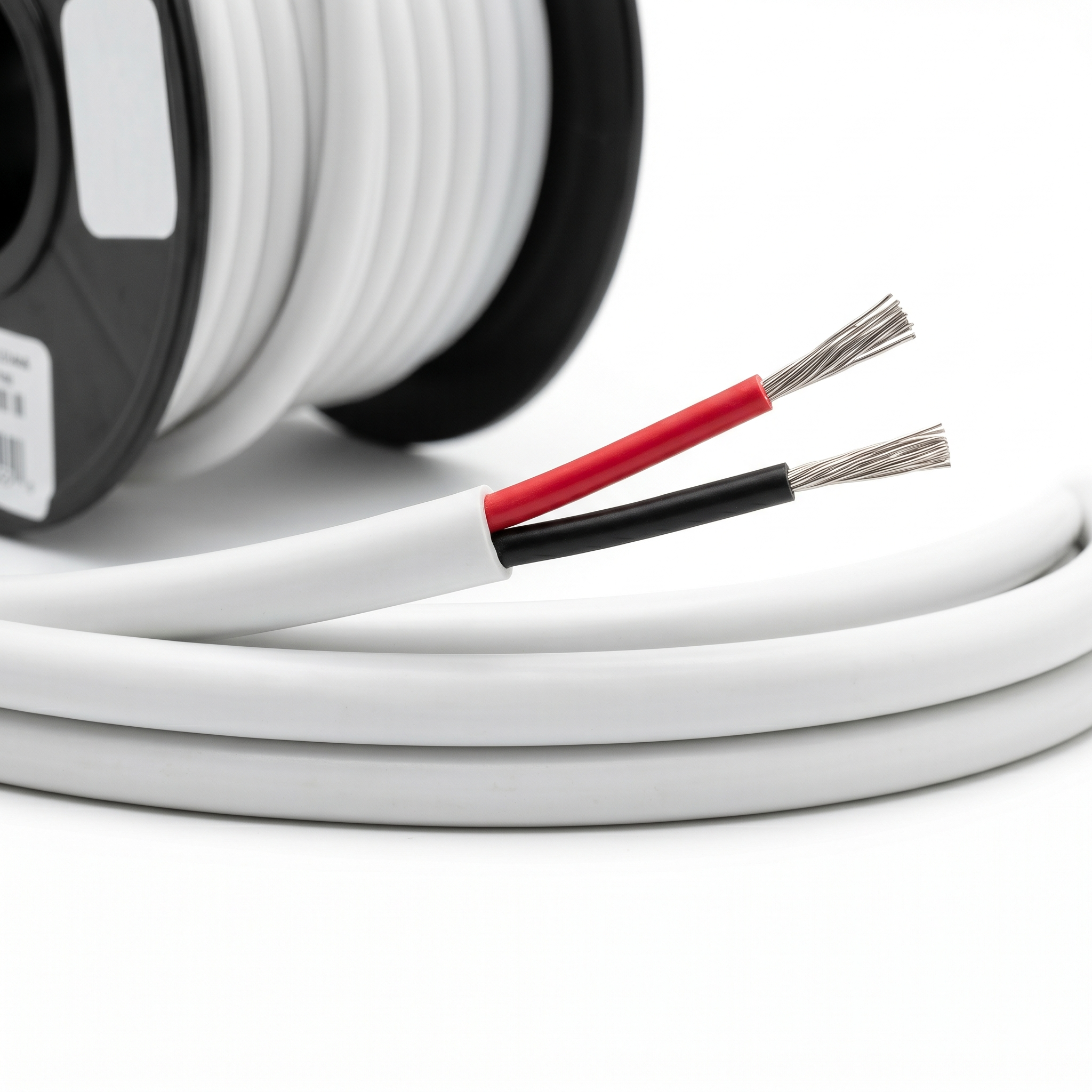

Tyree 4mm Twin Sheath Automotive Cable White
Step up your power delivery with the Tyree MWS22603-WH. This 4mm industry-equivalent cable offers a significant boost in current-carrying capacity over standard 3mm wire, making it the perfect choice for medium-duty electrical runs in automotive and marine environments. Sold by the metre, it gives you the flexibility to get exactly what you need for your specific project.
Why Choose Tyree 4mm Twin Sheath?
-
Tinned Copper Advantage: Utilizing Tinned Copper Wire (TCW) per AS/NZS 1125, this cable resists "green death" corrosion. It is significantly more durable than standard copper when exposed to moisture and salt air.
-
High-Heat Tolerance: The V90 PVC insulation and 5V90 outer sheath are rated for higher temperature environments, ensuring the cable doesn't degrade when run through engine bays or tight cavities.
-
Safe & Compliant: Fully compliant with AS/NZS 3808 and RoHS standards. The internal Red and Black cores provide clear polarity identification under a clean white outer jacket.
-
Increased Capacity: With a 22A rating, this cable handles higher loads with less voltage drop compared to smaller gauges.
Technical Specifications (SKU: SUR/MWS22603-WH)
| Feature |
Specification |
| Industry Equivalent |
4mm |
| Conductor No/Dia |
23 / 0.32 mm |
| Nominal Area |
1.8 $mm^2$ |
| Amp Rating |
22A (JASO D609 @ 30°C) |
| Electrical Resistance |
10.2 ohm/km (@ 20°C) |
| Nominal O.D. |
3.8 x 6.3 mm |
| Voltage Rating |
Extra Low Voltage Only |
