Yanmar 6AYM Seawater Pump 748660-42014-A Replacement Pump DJ-Y18001-A
by DJ Pumps
Original price
$5,500.00
-
Original price
$5,500.00
Original price
$5,500.00
$5,500.00
-
$5,500.00
Current price
$5,500.00

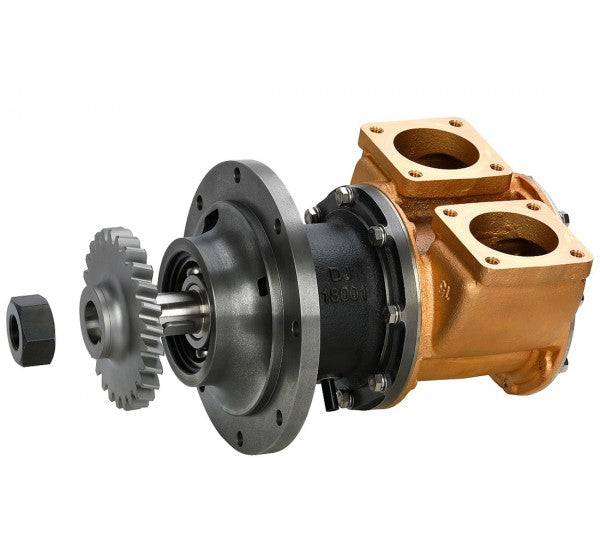

Replacement seawater pump 748660-42014-A for Yanmar 6AYM marine engines.
Replaces Yanmar raw water pumps 748660-42014-A, 748660-42012 & 748660-42013.
Bronze body, stainless steel shaft and with Ports 2-1/2" (65mm). Weight 24Kg / Including Gear 26Kg. The gear is included with this pump.
This is an aftermarket pump DJ Pump DJ-Y18001-A
Parts are interchangeable with Yanmar pump.

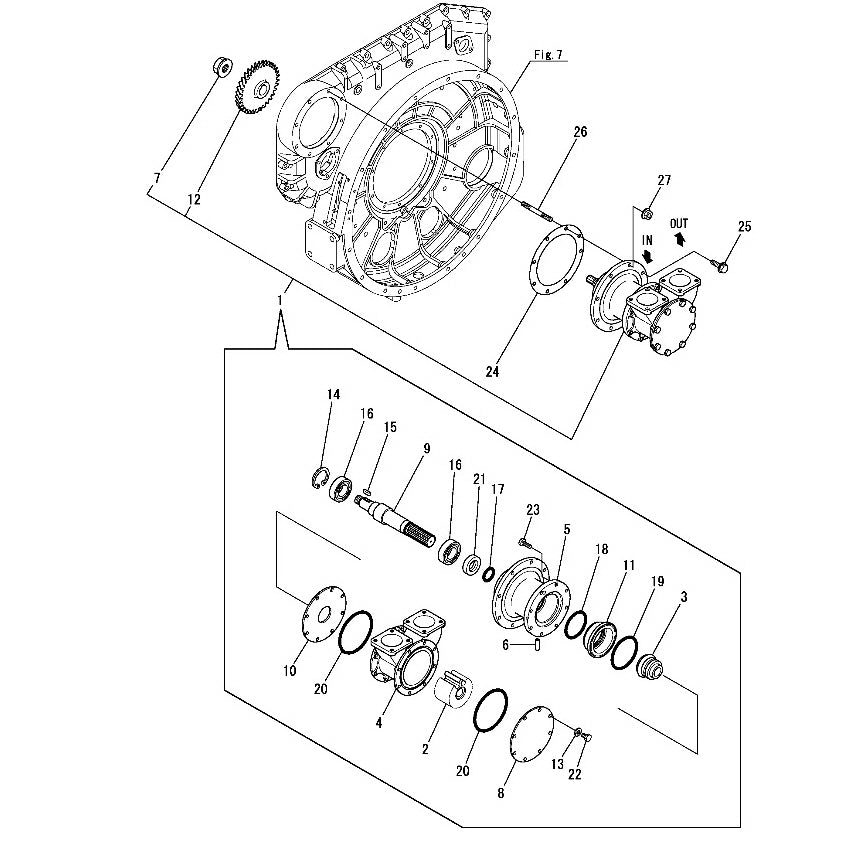

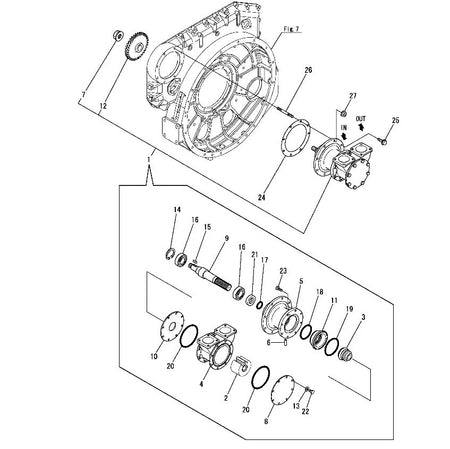

| Pos | Description | Yanmar Number | DJ Part / Replacement Part | Notes |
|---|---|---|---|---|
| Seawater Pump | 748660-42014 |
|||
| 1 | Impeller |
148018-42032 | DJ-08-18-1301 | JMP 9136 |
| 2 | Seal, Mechanical |
148218-42090 | DJ-MS038 | |
| 8 |
Cover Plate |
148018-42170 | ||
| 9 |
Shaft |
148660-42440 | ||
| 10 |
Plate |
148634-42340 | ||
| 11 |
Seal, Housing |
148018-42361 | ||
| 12 |
Gear |
148660-42460 | ||
| 15 |
Key |
22512-100280 | 10x26 |
|
| 16 |
Bearing |
24101-063084 | 6308 |
|
| 21 |
Oil Seal |
24421-405508 | TC405508 | |
| 24 |
Gasket, Mounting |
148660-42451 |
