Mercruiser Red Core 47-8M0137221 Water Pump Repair Kit Design II

Mercruiser Red Core 47-8M0137221 Water Pump Repair Kit Design II

by Marine Petrol Parts
$70.00 - $70.00
$70.00
$70.00 - $70.00
$70.00

Mercruiser 47-8M0137221 Water Pump Repair Kit Design II

Replaces Mercury Part Number: 47-8M0137221, 8M0121940, 8M0137221

Suits Mercruiser Engines:

Heavy duty impeller kit fits MCM/MIE 4.3L MPI, 5.0L MPI, 350 MAG MPImodel engines.

Can also be used on 4.5L and 6.2L seawater pumps in serial number ranges:

4.5L Bravo 2A531163 and above,
6.2L Bravo 2A531197 and above,
6.2L Inboard 2A530774 and above,
6.2L TowSport 2A531348 and above.

Includes shorter heavy duty impeller, rear wear plate and overmolded inner (front) wear plate for use when the front of the seawater pump impeller housing is worn due to debris.

Impeller size:

Number of Blades: 8
Impeller Diameter: 2-5/8"
Impeller Length: 2"

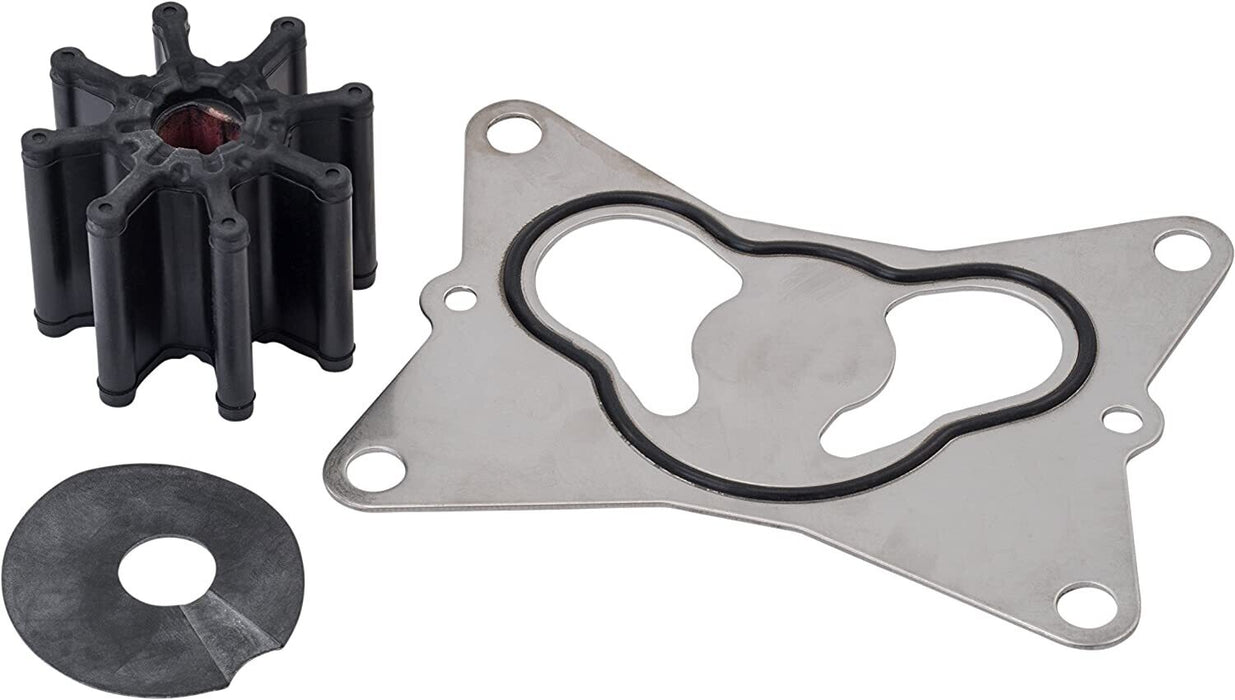

Kit Includes

(1) - 8M0114788 - Outer Wear Plate With Seal
(1) - 8M0103389 - 0.030 in. Shorter heavy Duty Impeller
(1) - 8M0072979 - "Overmolded" Inner Wear Plate

This is a non oem aftermarket part- REC98-8M0121940
